Portable Tactical Airspace Awareness
SkyTAK is a compact, ruggedized airspace surveillance solution designed for tactical edge operations. As a portable, passive receiver supporting ADS-B and Mode 5 Level 2/2-B, SkyTAK delivers real-time situational awareness directly to ATAK-enabled devices. Whether dismounted, vehicle-mounted, or supporting UAV missions, SkyTAK provides unmatched airspace visibility, enhances fratricide prevention, and improves decision-making in dynamic environments. With seamless integration, plug-and-play simplicity, and multi-domain support, SkyTAK ensures operators maintain an operational advantage in contested and congested airspace.
Primary Features

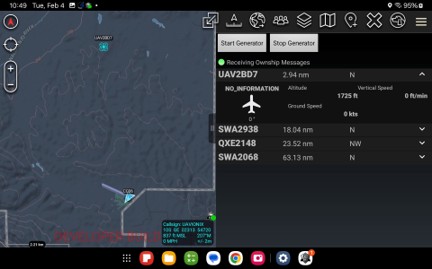

Passive Airspace Monitoring
Track Mode 5 and ADS-B traffic in real-time with ATAK.
ATAK Enabled Coordination
Push airspace data to squads, platoons, or command elements instantly.
Field-Ready Design
Rugged, waterproof, and lightweight—built for operational flexibility anywhere.
Additional Features
Enhanced Performance and Integration Capabilities
Integrated ATAK Interface
SkyTAK connects directly to ATAK, WinTAK, and WebTAK environments using CoT format, requiring no additional software installation.
Nett Warrior Compatible
Standardized connectors allow direct integration with existing military systems and gear.
No External Antenna Needed
Fully self-contained design simplifies deployment without sacrificing performance.
FAQ's
Knowledge Base
What types of aircraft can SkyTAK detect?
SkyTAK passively receives ADS-B (978/1090 MHz) and Mode 5 Level 2/2-B broadcasts, allowing detection of civilian and military aircraft.
Is SkyTAK compatible with ATAK out of the box?
Yes, SkyTAK with the uAvionix xTAK plugin installed on the end-user device delivers seamless plug-and-play with ATAK, supporting direct CoT data output.
How is SkyTAK powered in the field?
SkyTAK is designed for low power draw and integrates with standard tactical batteries, supporting extended field operations without recharging.
Documentation
SkyTAK Manuals & Guides
Technical Specification
Downloads
Technical Specification ALT
| Specification | Value |
|---|---|
| Input Voltage / Power | 8-32 Vdc 1 Watt (continuous) |
| Size | 5.7 in x 3 in x 1.85 in |
| Weight | 500 g (approx.) |
| Operating Temp | -45° to 71° C |
| Receiver | |
| ADS-B 1090 Rx Sensitivity | -79 dBm ±2 dB |
| Mode 5 Rx Sensitivity | -84 dBm ±2 dB |
| ADS-B 978 RX Sensitivity | -81 dBm ±2 dB |
| Interfaces | |
| Control | Mighty Mouse 807 NW 8070-1675-00ZNU6-6SY |
| Digital Interface | USB 2.0 Dual Serial Port COM 1 – AIMS 23-901 115,200 bps, Traffic COM 2 – uAvionix UCP 57,600 bps, Control |
| Crypto | AIMS 04-900(A) KIV-79 |
| Antenna Options | |
| Integrated Antenna | 25 nm range |
| External TNC Antenna | 150 nm range |
