Your Compact Mode S ADS-B Solution

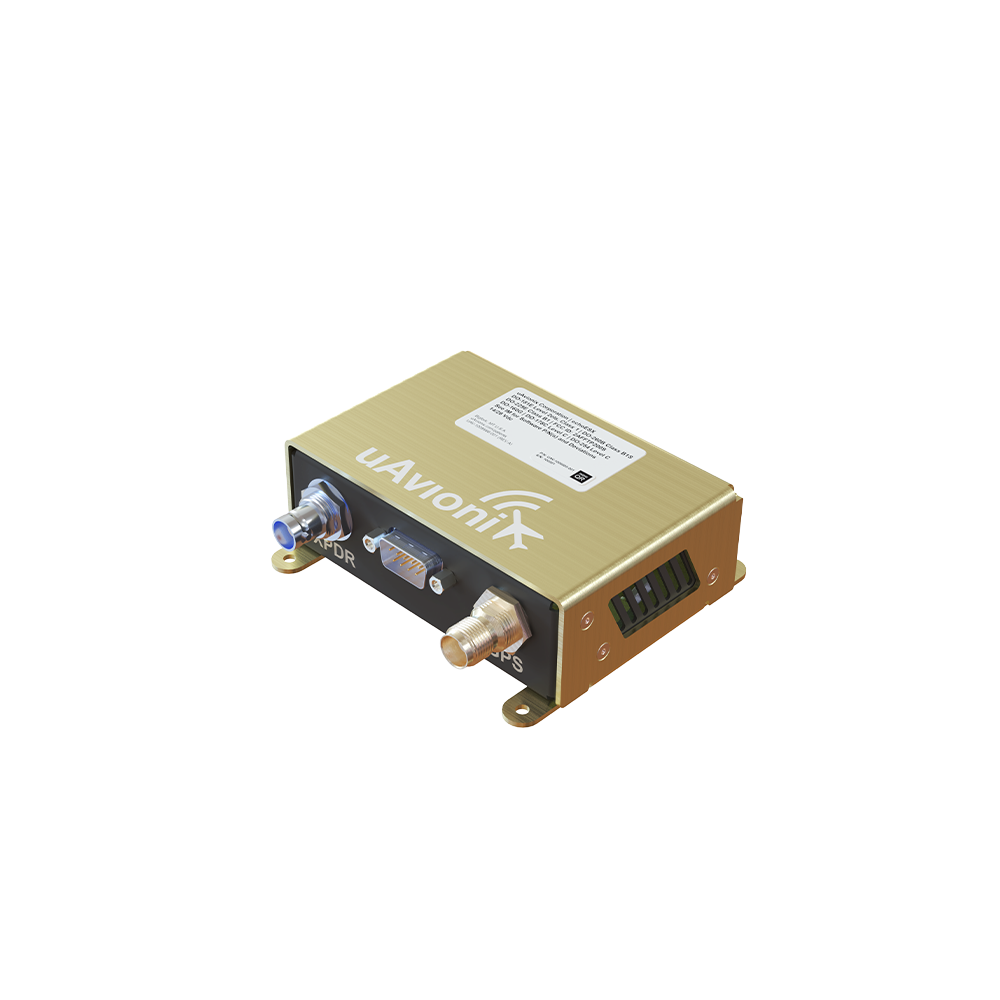

echoESX from uAvionix is a state-of-the-art remote mount Mode S ADS-B Out transponder integrated with a high-performance GPS receiver. Designed for both experimental and certified aircraft, echoESX provides seamless cockpit integration, simplified installation, and reliable ADS-B compliance, significantly enhancing situational awareness and operational efficiency.
Primary Features

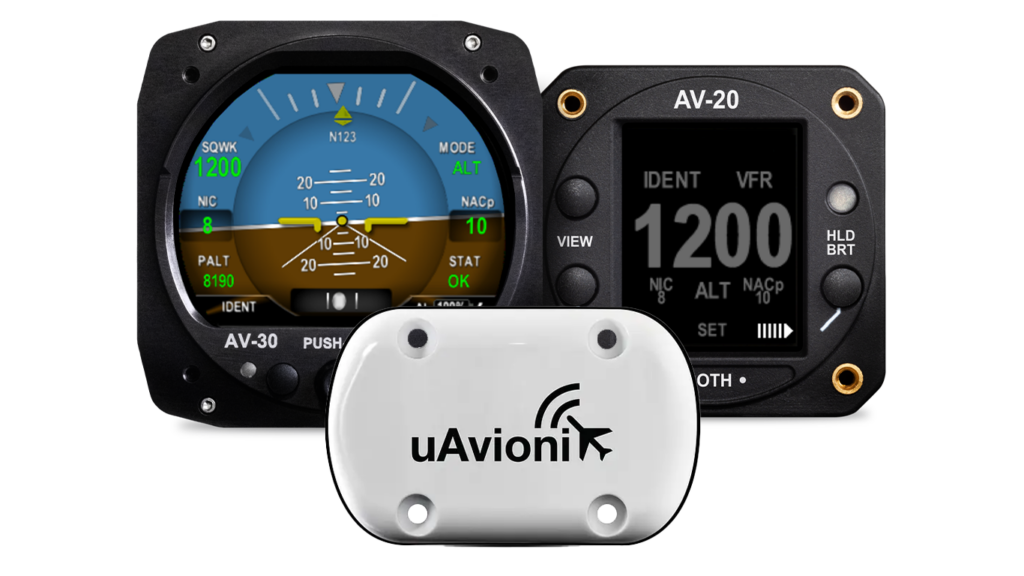

Streamlined Integration
Designed to integrate seamlessly with AV-30-E and AV-20-E displays, echoESX also features an internal GPS receiver—eliminating the need for a separate GPS installation. For certified aircraft, an optional TSO-certified GPS antenna from uAvionix completes the package.

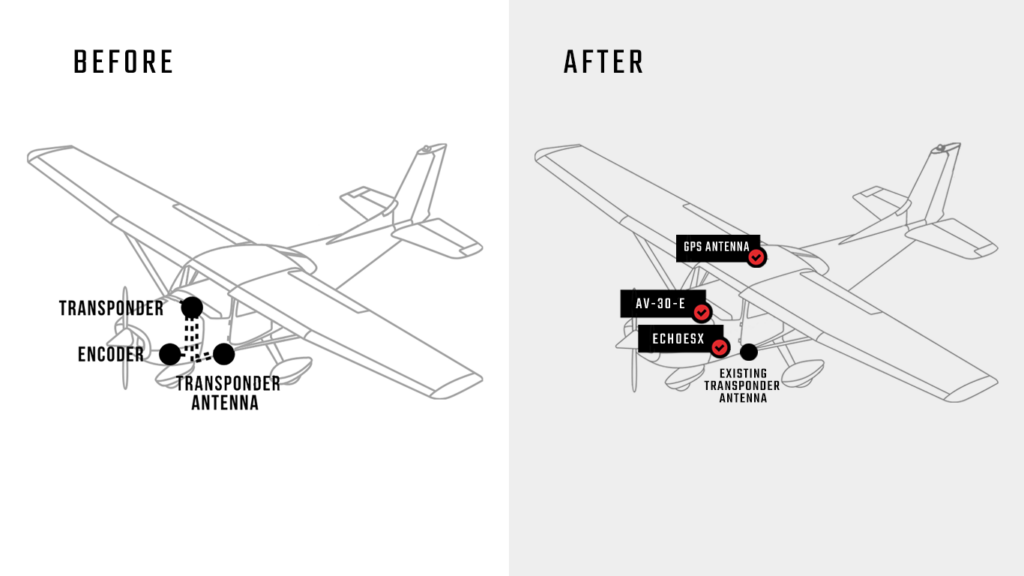

Easy Retrofit
Designed for quick retrofit installation that clears up your panel compared to traditional ADS-B Mode S transponders, echoESX is an easy replacement for your existing Mode C transponder with the ability to use your existing installed monopole transponder antenna.
Additional Features
Optimized Installation and Performance
User-Friendly Setup
Quick setup and intuitive configuration via AV-30-E and AV-20-E displays
Ecosystem Integration
Enhanced interoperability within the uAvionix ecosystem (AV-Link, AV-HSI, ForeFlight Sentry)
Compact Remote-Mount Solution
The echoESX combines a space-saving remote-mount design with ultra-efficient operation. Its minimal Size, Weight, and Power (SWaP) profile makes it an ideal upgrade from bulky legacy transponders, reducing strain on your aircraft’s electrical system.
Regulatory Compliant
Meets ADS-B Out regulatory requirements per FAA standards (14 CFR 91.227)
Built for Durability
Robust environmental durability (DO-160G compliance)
Precision Positioning
Integrated SBAS GPS Receiver providing precise positioning for reliable operation
Knowledge Base
FAQ’s
- Aircraft Compatibility
- FAA Requirements
- Installation
- Operation
- Maintenance
- Troubleshooting Tips and Tricks
Which aircraft can use echoESX?
echoESX is suitable for experimental and certified fixed-wing aircraft, gliders, and gyrocopters. FAA TSO Certification is currently pending approval.
Does echoESX meet FAA ADS-B compliance?
Yes, echoESX meets the FAA ADS-B Out performance standards as per 14 CFR 91.227.
What does installation involve?
echoESX installs quickly using existing monopole transponder antennas and an integrated GPS, significantly reducing installation complexity and cost. External GPS Antenna is required.
How do pilots control and configure echoESX?
Control and configuration are handled seamlessly via AV-30-E or AV-20-E instruments, simplifying pilot interaction.
What routine maintenance is required?
echoESX requires minimal maintenance, typically involving periodic regulatory function checks only.
What if the echoESX transponder doesn't respond to all test sets?
echoESX transponders, certified post-January 2020, intentionally do not respond to ATCRBS/Mode S All-Calls during testing. Utilize the Ground Test Mode “BeaconX GTM” on AV-30-E or AV-20-E to verify transponder functionality correctly.
