Electronic Conspicuity - Portable ADS-B IN & OUT + FLARM

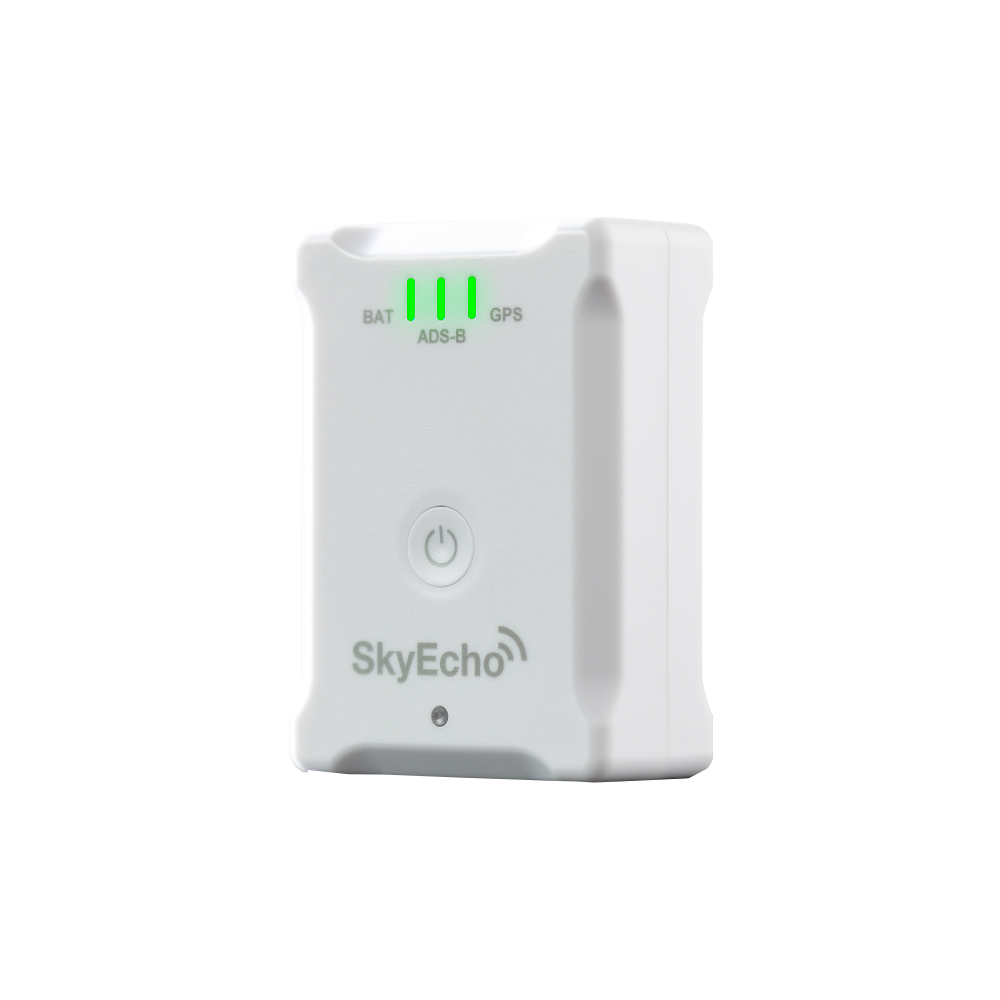

SkyEcho is a compact, portable ADS-B IN/OUT transceiver designed to enhance your visibility and situational awareness in the air. By broadcasting your aircraft’s position, altitude, course, and speed, SkyEcho ensures you’re seen by both ADS-B, and FLARM equipped aircraft and air traffic control systems—greatly improving electronic conspicuity. Approved for use in the UK, Australia, and New Zealand, SkyEcho is a game-changing solution for general aviation pilots seeking a simple, effective way to increase safety and stay compliant in shared airspace.
Primary Features
'See and Be Seen' for Safety and Awareness
Dual-Band ADS-B Transceiver
SkyEcho is not just a receiver but also transmits ADS-B data on 1090MHz. It meets MOPS DO-260B Class A0 with 25W output power, making your aircraft visible to ATC and nearby ADS-B equipped aircraft.

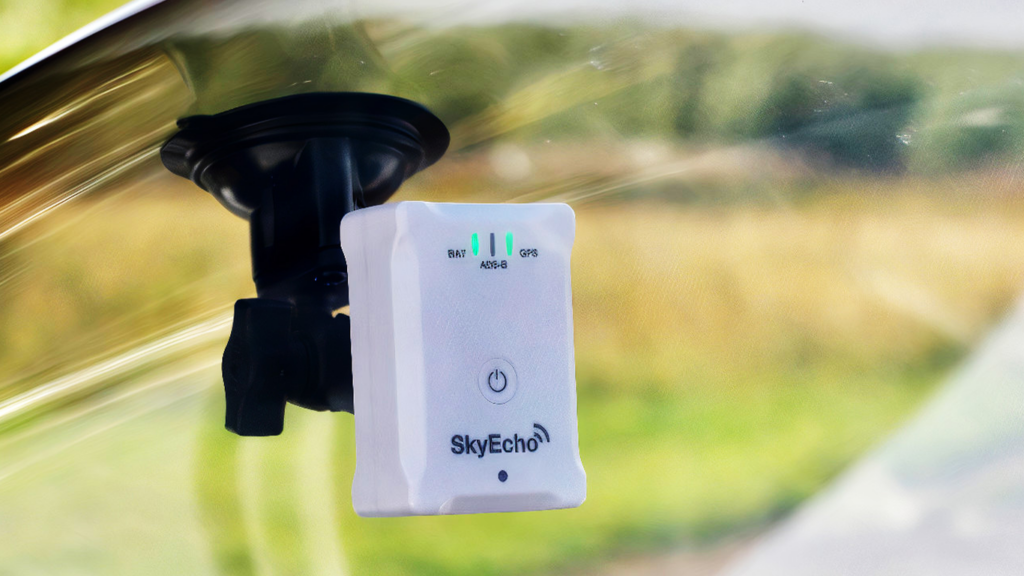

Portable and Easy to Use
Designed as a portable device, it integrates seamlessly with your Electronic Flight Bag (EFB) apps like ForeFlight, SkyDemon, and others through GDL90 protocol over Wi-Fi, supporting real-time traffic information.
Integrated Certified GPS
Features a TSO-C199 certified GPS that provides high-integrity, SBAS-augmented position data to ATC and nearby aircraft, enhancing safety and situational awareness.

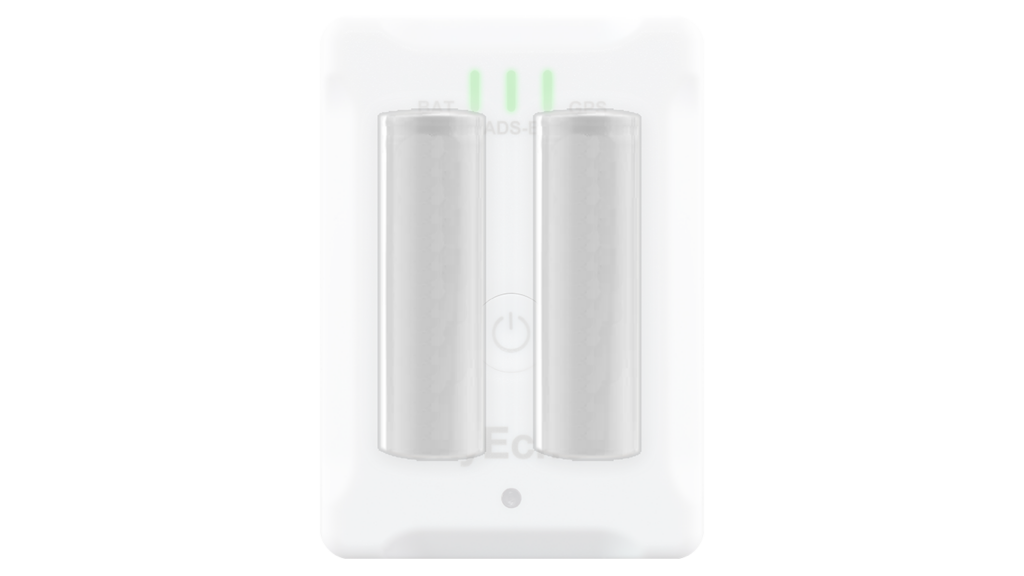

Extended Operational Capacity
The internal battery supports up to 12 hours of continuous operation, ideal for long flights, and is rechargeable via USB-C, ensuring it is ready for use whenever needed.
Additional Features
Expanded Capability for Confident Flying
Enhanced Safety and Visibility
Approved under UK CAA CAP 1391 and CASA 20:18, it allows light aircraft to be visible without the need for traditional transponders.
Multiple Connection Capabilities
Connects up to 4 devices simultaneously over Wi-Fi, allowing the crew and passengers to view real-time traffic information.
Weather and Traffic Information
Capable of receiving FIS-B and TIS-B information where available, providing comprehensive in-flight data for better decision-making.
Barometric Altimeter Integration
Includes a barometric altimeter that correlates pressure altitude with nearby traffic data for accurate relative altitude awareness.
FLARM Compatibility
In regions where FLARM is used, such as Europe, SkyEcho can receive and display FLARM traffic information through compatible EFB applications.
Robust and Regulatory Compliant
Meets stringent regulatory requirements and is built to withstand extreme temperatures from -45 to 70°C, ensuring reliable performance under various environmental conditions.
Products
SkyEcho Accessories
SkyEcho 2 Soft-Shell Case

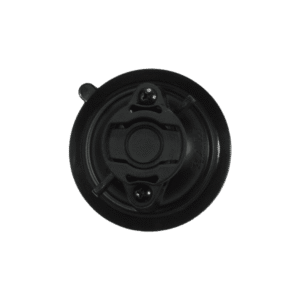

RAM Suction Cup Mount
Packages
ADS-B and FLARM Traffic Display on Your EFIS
FAQ'S
SkyEcho Knowledge Base
- Aircraft Compatibility
- FAA Requirements
- Installation
- Operation
- Maintenance
- Troubleshooting Tips & Tricks
What types of aircraft can use SkyEcho?
SkyEcho is suitable for light aircraft, gliders, and balloons as approved under UK and Australian regulations.
Is SkyEcho approved for use in the USA?
No, SkyEcho is not approved for use in the United States due to non-compliance with FCC regulations.
How do I install SkyEcho in my aircraft?
SkyEcho does not require professional installation. It can be mounted using a suction cup on any aircraft window providing a clear view of the sky.
How do I operate SkyEcho with my existing EFB?
Connect SkyEcho via Wi-Fi to your EFB device. It is compatible with any GDL 90 standard protocol EFB application.
What maintenance does SkyEcho require?
SkyEcho is maintenance-free, other than regular charging and firmware updates as recommended by uAvionix.
What should I do if SkyEcho is not transmitting data?
Ensure that it is charged, properly configured via its internal Wi-Fi setup page, and that there are no obstructions blocking its antennas.
Documentation
SkyEcho Manuals & Guides
Technical Specifications
| Specification | Value |
|---|---|
| Operating Time | 12 hours |
| Operating Power | 3 watts |
| Size | 57x82x30mm |
| Weight | 120 grams |
| Source Integrity Level (SIL) | 1 |
| System Design Assurance (SDA) | 0 (UK), 1 (Australia) |
| Operating Temp | -45 to 70°C |
| Transmitter | |
| Frequency | 1090MHz ±1MHz |
| Transmit Power | 20W Nominal |
| Frequency | DO-260B DF-18 |
| Receiver | |
| 1090 Performance | -93 to 0dBm |
| 978 Performance | -103 to 0dBm |
| WAAS GPS | |
| Augmentation | SBAS |
| Sensitivity | -167dBm |
| Altimeter | |
| Range | -1000 to 60,000ft |
| Interfaces | |
| Wi-Fi | 802.11 b/g/n 2.4GHz 4 simultaneous Connections |
| Ports | USB-C |
