Most Reliable Enterprise AutoPilot

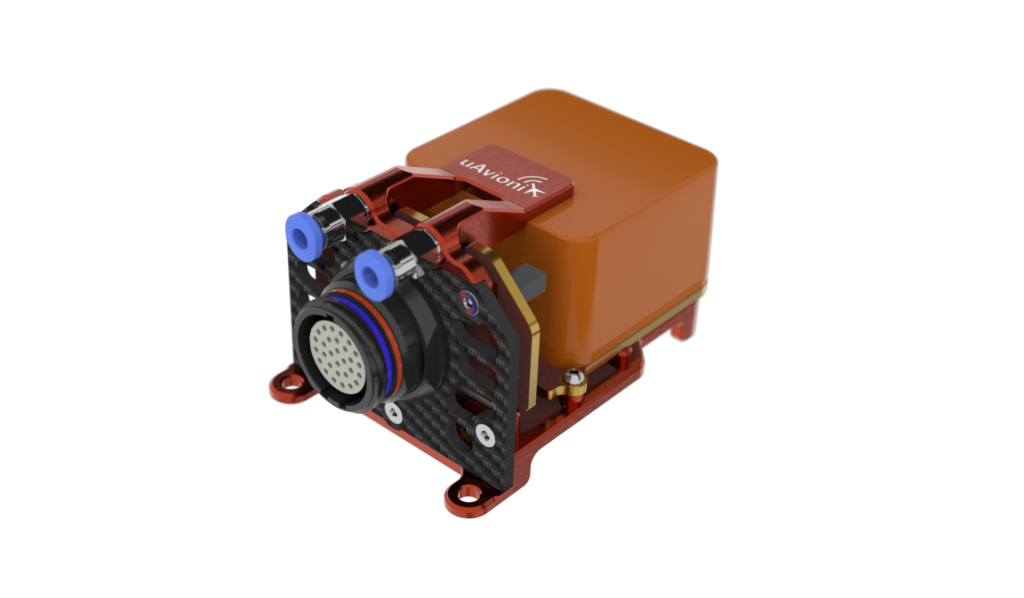

Meet George. George combines the flexibility and over a decade’s worth of open-source innovation in UAS autopilots with the robustness of certifiable DAL-C hardware. George has the aircraft.

George

Get Started with George

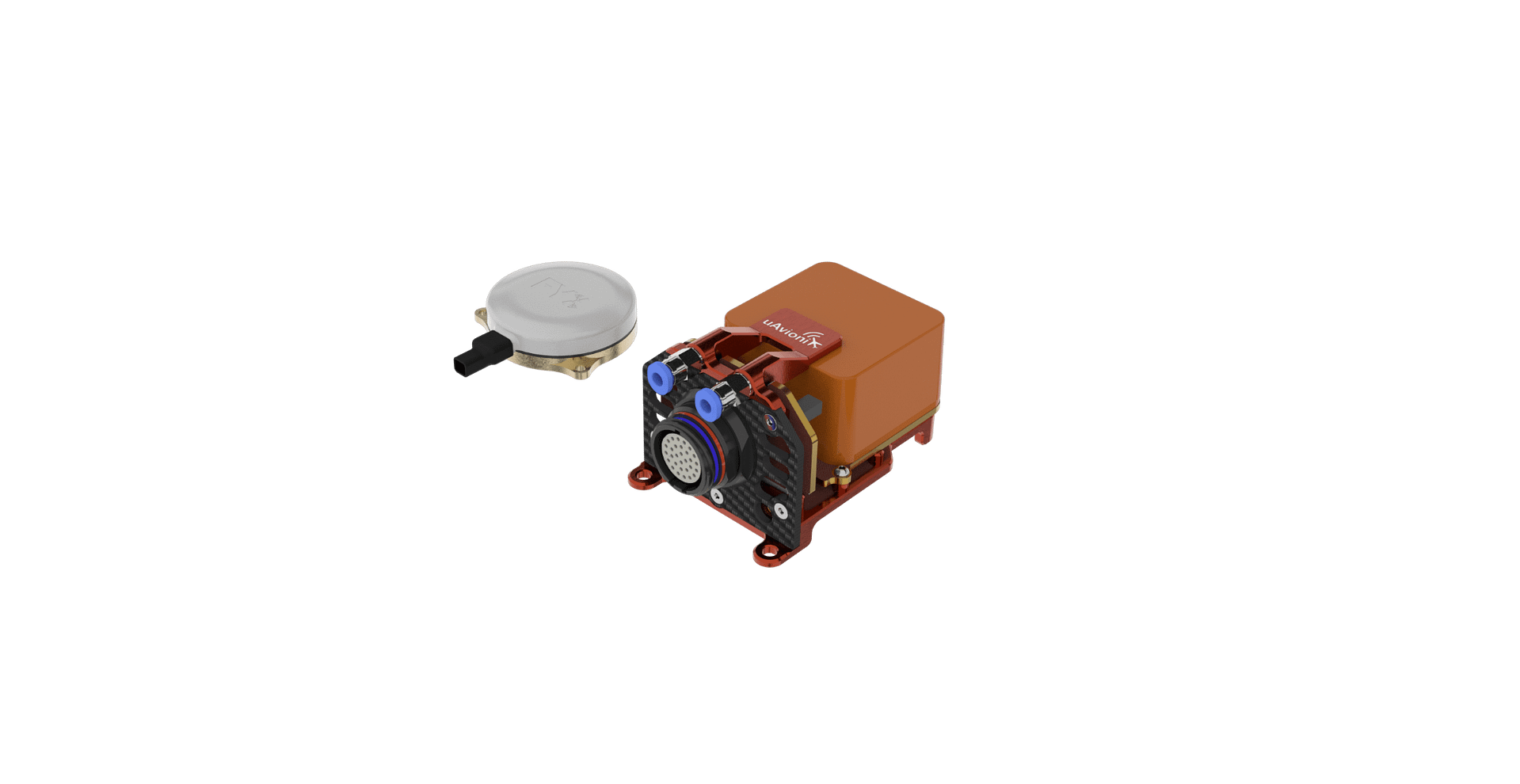

George Integration Kits includes everything early adopters and platform developers need to integrate into an existing platform and start flying out of the box.

Sensor Integrity

George uses the highest-quality GPS, C2 Radio, airspeed, Detect and Avoid (DAA), and military-grade geomagnetic sensors for unprecedented accuracy and platform integrity.

Built on a familiar architecture

George is built on the trusted and proven CubePilot autopilot. Migrate your existing Ardupilot or PX4 software and configuration to George’s robust certifiable platform.

Lightweight and low power consumption

UAS have limited energy resources to support your mission. George is engineered specifically to minimize size, weight, and power consumption for longer flight times and larger payloads.

Certifiable and tested to aviation standards

We’ve brought the same rigorous safety standards to UAS that have ensured aviation as the safest form of transportation. George is engineered to DO-160G and MIL-810H environmental standards, and designed to meet DO-254 DAL C.

+ Environmental Qualifications

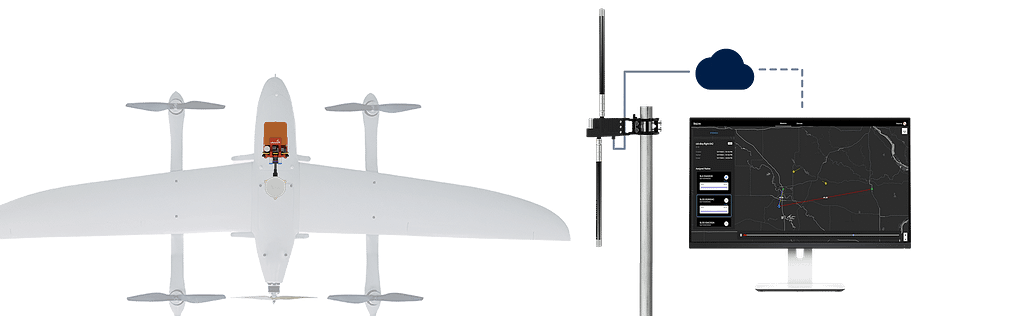

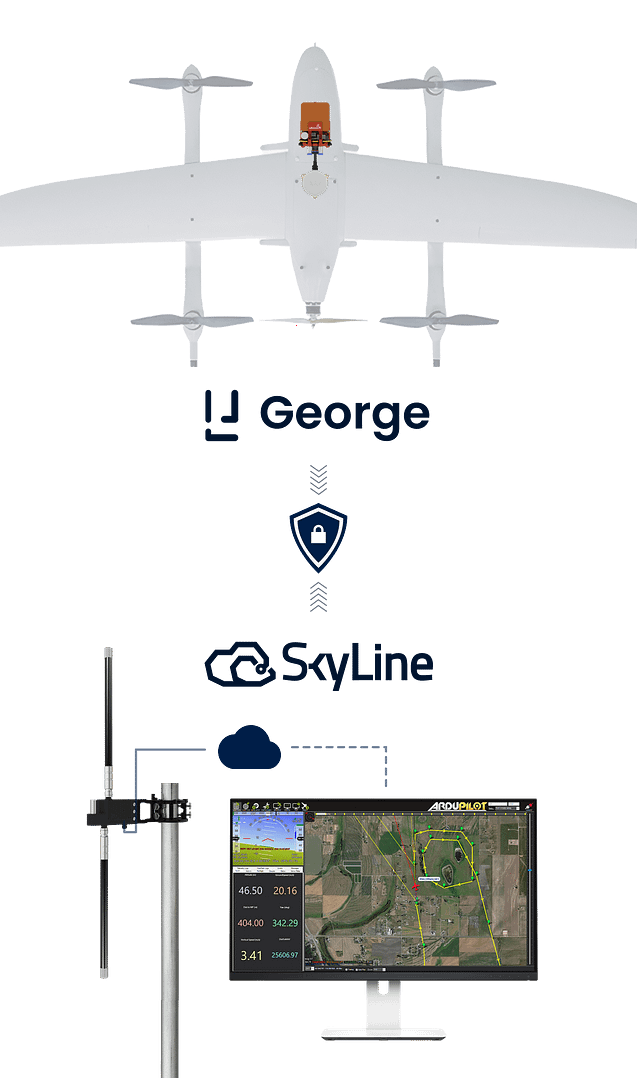

SkyLine Cloud-Based C2 Compatible

Available with an integrated ISM band radio or upgradable to SkyLink for C-band protected-spectrum. Connect to skyStation2 ground radios for reliable, scalable, cloud-managed BVLOS missions.

Detect and Avoid
(DAA) Ready

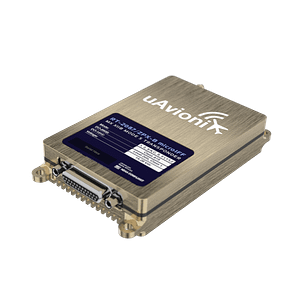

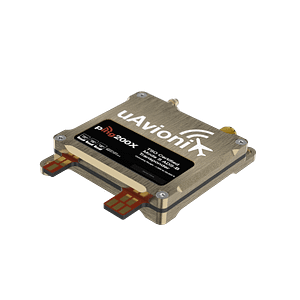

George is available with integrated ADS-B IN or by adding pingRX Pro to see nearby aircraft. For high altitude and mission-critical operations, add the ping200X Mode S Transponder with ADS-B to be seen by surrounding aircraft and for access to controlled airspace.

Hardened interfaces and power supplies

Level up from hobby-grade autopilots, with the same reliability and testing that ensures manned aircraft fly safely. All interfaces are subjected to extensive testing for normal and abnormal power conditions, lightning, and interference rejection. George is ready to meet your mission conditions.

Enterprise Flight Control Software

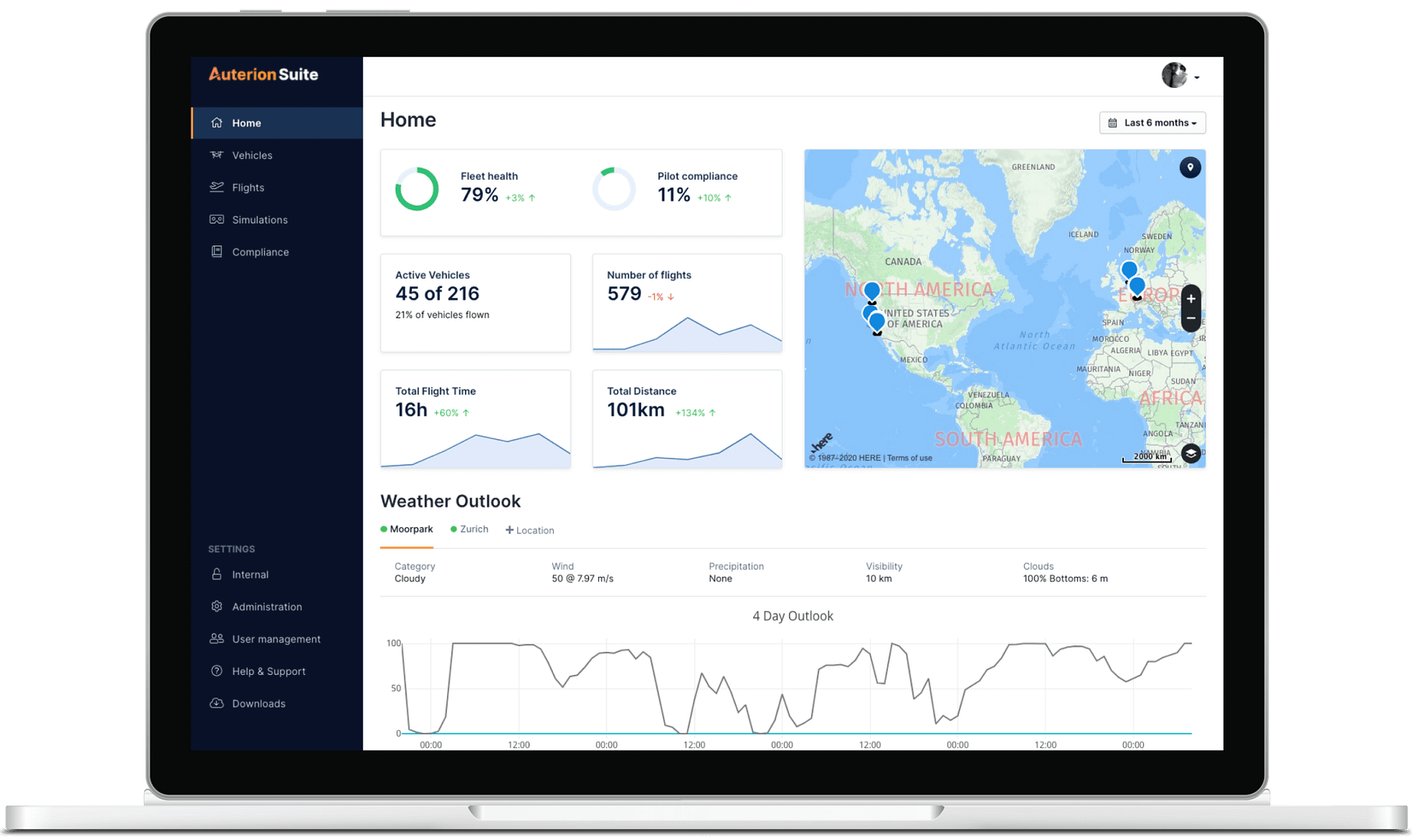

George’s integrated radio architecture allows for easy control via a skyStation2 ground radio station using your favorite control software. Develop, prototype, and launch your platform using popular flight control software such as the Auterion Enterprise PX4.

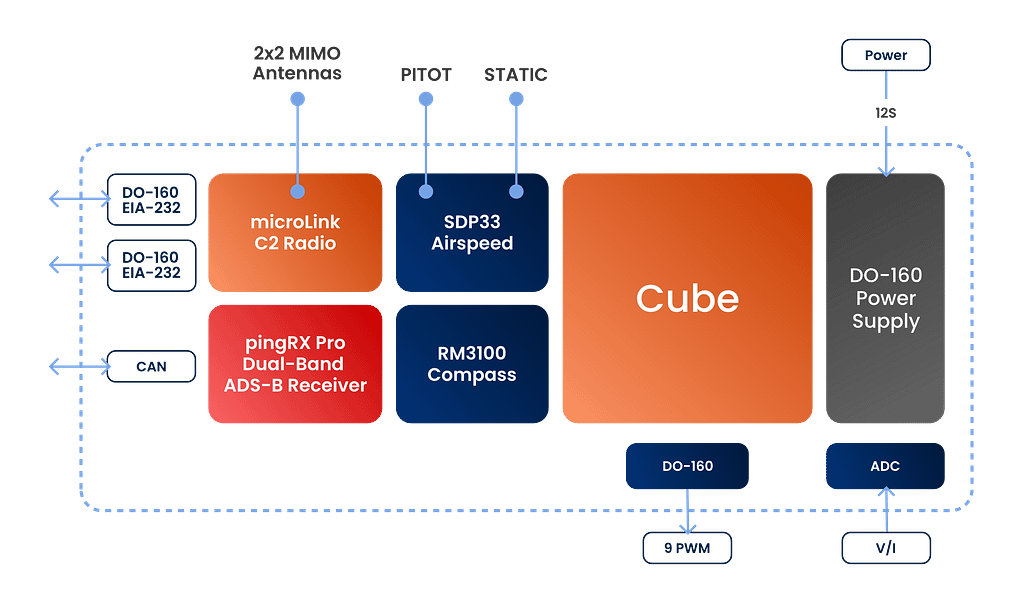

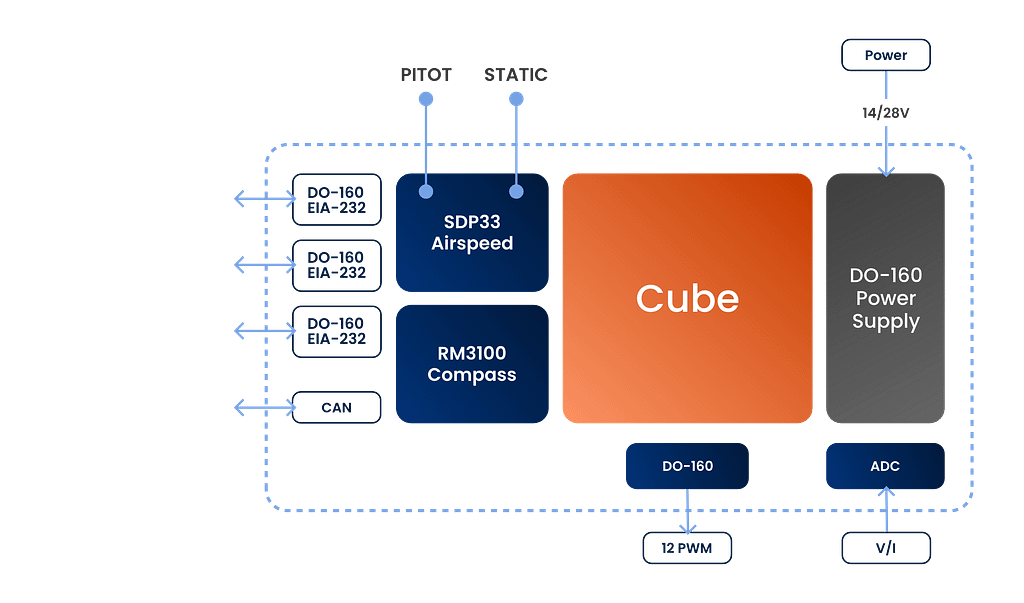

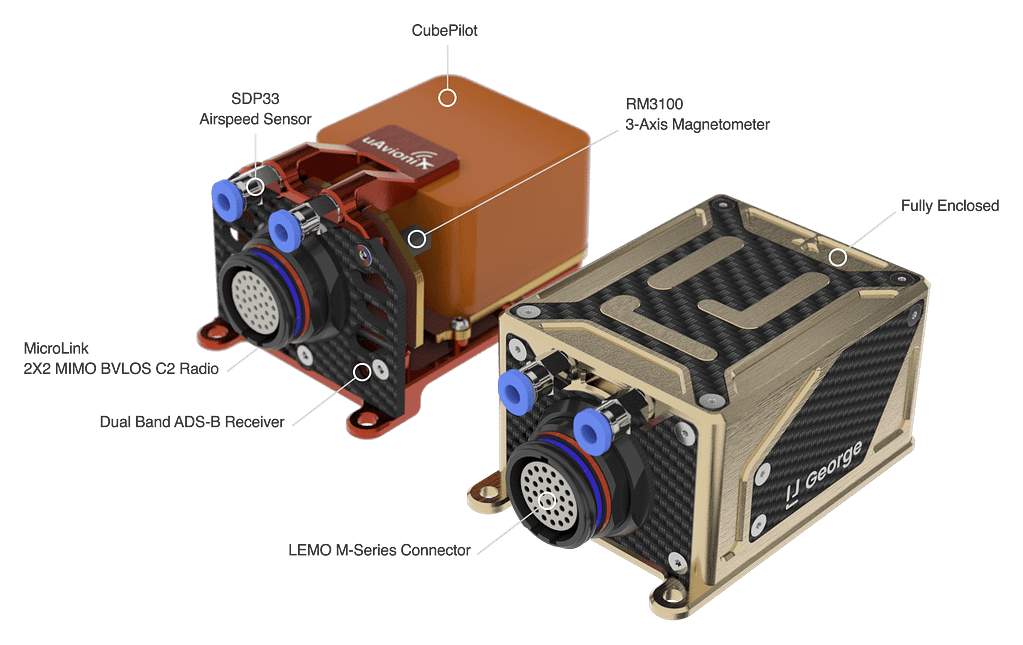

George Models

For maximum flexibility and robustness, George is available in two models to accommodate both Group 2 and Group 3 UAS needs.

CAN-bus

2

Servo/ESC Outputs

9

RS-232 Serial IO

2

2X2 MIMO BVLOS C2 Radio

Dual Band ADS-B Receiver

CAN-bus

1

Servo/ESC Outputs

12

RS-232 Serial IO

2.5

External C2 & ADS-B Options

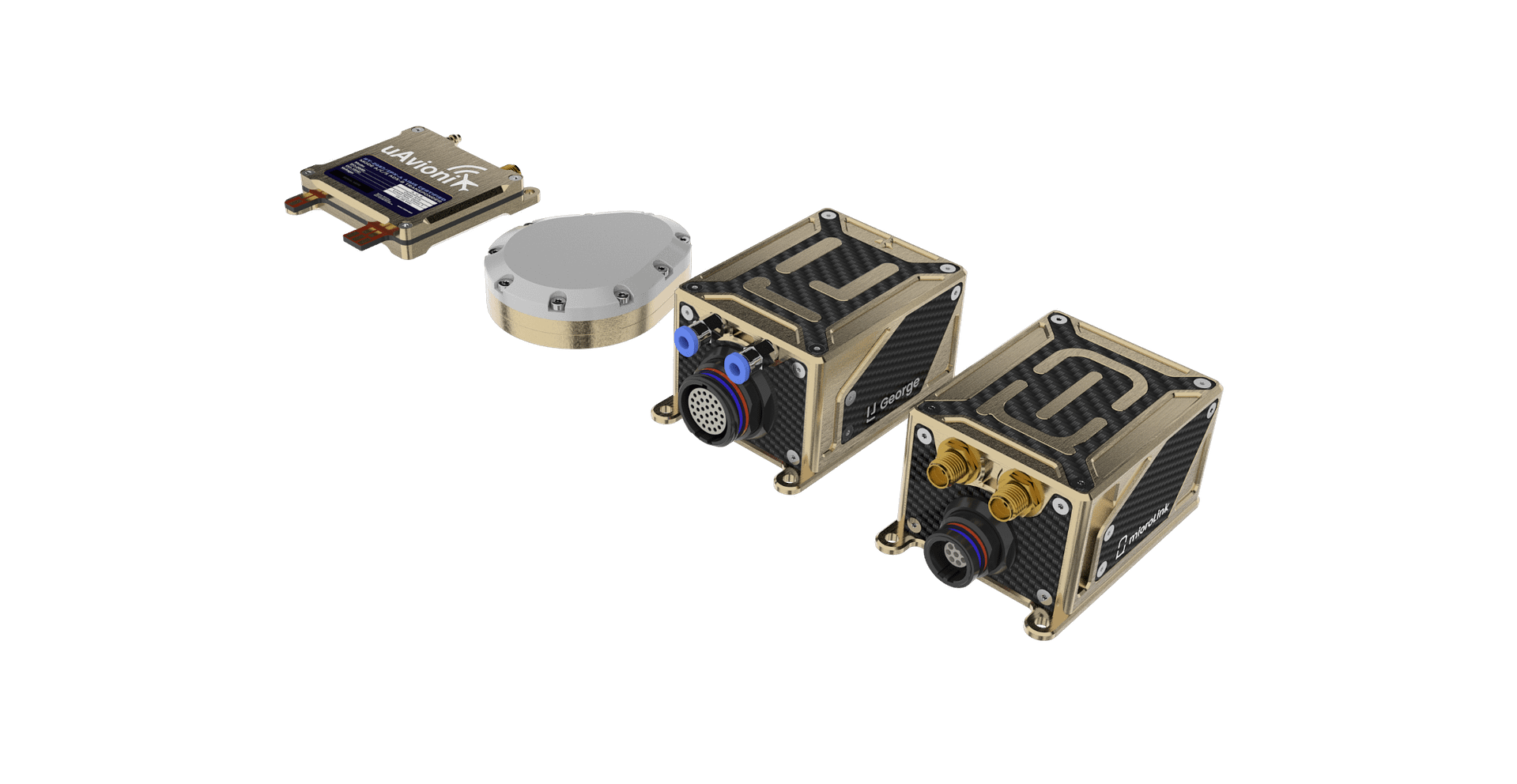

George Configurations

From prototyping to business and even the battlefield, George is ready to support your platform.
Mix and Match components to best meet your needs and satisfy local regulators.

Basic

Autopilot

George G2

GPS

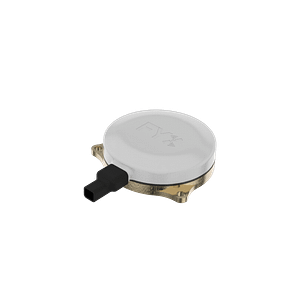

truFYX

Integrated 2X2 MIMO BVLOS C2 Radio

Integrated Dual Band ADS-B Receiver

Enterprise

Autopilot

George G3

GPS

truFYXext

DAA

ping200X

C2

microLink Enterprise

ADS-B IN

pingRX Pro

Defense

Autopilot

George G3

GPS

truFYXext

DAA

ZPX-B

C2

SkyLink

ADS-B IN

pingRX Pro

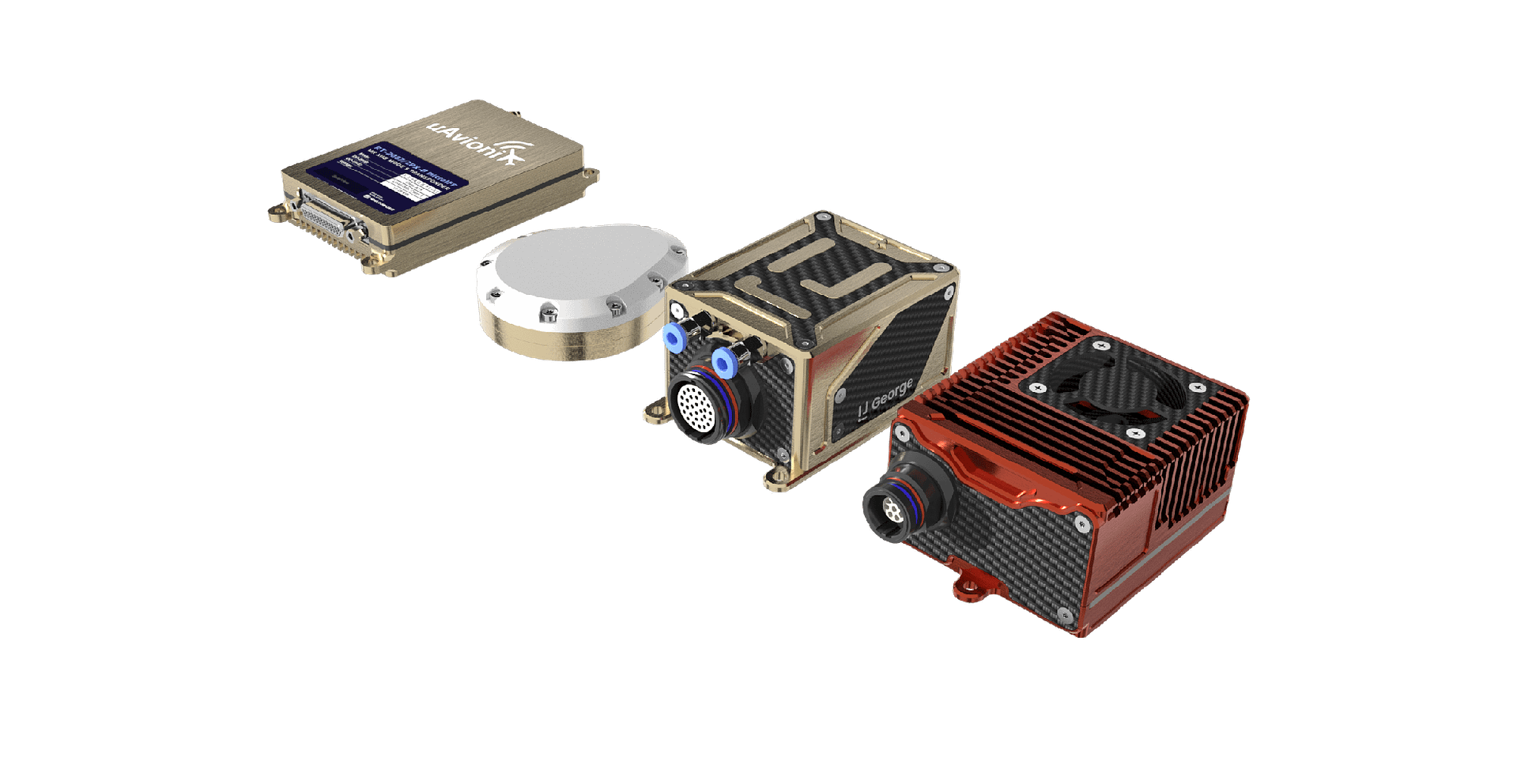

A Complete Ecosystem of
Compatible Certified Solutions

George is plug and play with all uAvionix certified solutions.
Make your platform’s safety case with type-certified aviation-grade avionics and ground infrastructure.

Optimized for VTOL

While George provides the flexibility of the Pixhawk platform, it’s sweet spot is optimized for Vertical Takeoff and Landing (VTOL) Fixed Wing platforms – the most flexible and energy-efficient combo to emerge in aviation in over a century.

Get Started with George

George Integration Kits includes everything early adopters and platform developers need to integrate into an existing platform and start flying out of the box.

Contact Us

Get to know George

Contact us for more information, quotes, or to learn more about George and the vast integrations for your UAS platform.
