ping200XR

It’s in There – Mode S ADS-B Transponder with Integrated Aviation GPS

ping200XR combines the same technology used in the TSO certified ping200X transponder with an internal aviation GPS. Enabling airspace access, regulator, and Air Navigation Service Provider (ANSP) acceptance worldwide, ping200XR enables your aircraft to be detected by Secondary Surveillance Radar (SSR), Traffic Collision Avoidance Systems (TCAS), and ADS-B IN receivers.

ping200XR

Efficiently Powerful

ping200XR maintains its iconic ultra-small form-factor and mission to bring aviation-grade avionics to UAS. ping200XR meets the unique size, weight, and power challenges Class 1 and 2 sUAS face by only weighing an incredible 52-grams. ping200XR even manages to outperform bulkier transponders while drawing only 1.5 Watts.

Integrated Aviation SBAS GPS

ping200XR includes the uAvionix truFYX SBAS GPS receiver meeting the performance requirements of RTCA DO-229D and TSO-C145e, meeting the requirements of global controlled airspace. The Source Integrity Level (SIL) 3 GPS guarantees visibility to certified avionics in other aircraft and Air Traffic Control.

Autopilot Control or Payload Operation

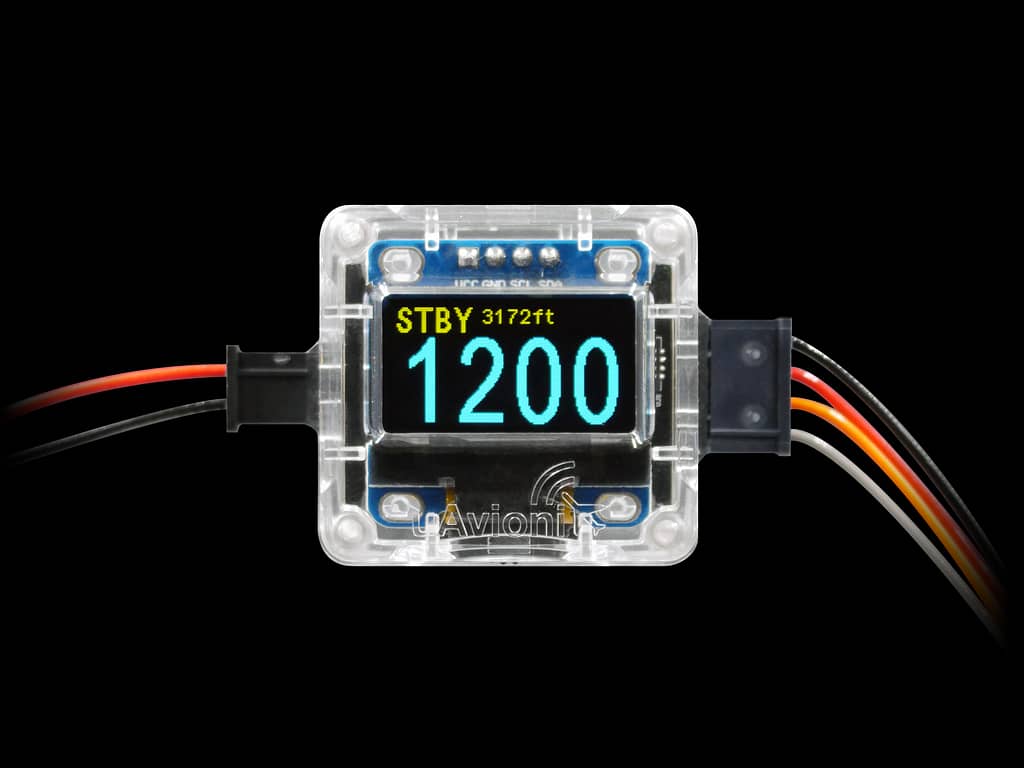

The ping200XR can be integrated with your autopilot for dynamic control from your ground control station (GCS) or carried as a payload with the uAvionix mini-controller for easy set and forget functionality. Power on, set your squawk, and fly!

The serial control protocol is based on industry standards offering broad autopilot support, with physical protocol converters coming soon for broader adaptation.

Contact Us

Discover ping200XR

Reach out for more information, quotes, or to learn more about the benefits of ADS-B on your UAS.

  • This field is for validation purposes and should be left unchanged.
Specification Value
Input Voltage 11-34V (3S-8S LiPo)
1.5W Continuous On/Alt.
4W Peak (8ms maximum)
Size 47 x 72 x 10 mm
Weight 52 grams
SDA/SIL 2/3
Operating Temp -45 to 70°C
Transponder
MTL 1030MHz -74dBm ±3dB
1090 Transmit Power 250W Nominal
Position Engine
GPS L1C/A w. SBAS 12 GPS Channel
3 SBAS Channels
HPA / VPA 5m / 7m
Velocity Accuracy 3 m/s
Time Accuracy 30 ns
Update Rate 5 Hz
SIL/SDA 3/2
Acquisition Sensitivity/ -148 dBm
Tracking Sensitivity/ -167 dBm
Altimeter
Range -1000 to 35,000ft – TSO-compliant
35,000 to 50,000ft – ±1% Accuracy
Interfaces
Control
Baudrate 1200-2Mbps
Protocol GDL90+
Position
Baudrate 115200bps
Protocol uAvionix OEM Protocol
Options 1030/1090MHz Transponder Antenna
