pingRX Pro

Professional Detect and Avoid

The all-new pingRX Pro is the latest purpose-built Detect and Avoid (DAA) system for professional UAS applications. With easy autopilot integration and the added protection of an aircraft-aluminum housing and detachable remote mount antenna, pingRX Pro is the ideal ADS-B receiver for professional UAS operators who need reliability, rugged build quality, and flexibility for limitless UAS applications.

$349

Learn More
pingRX Pro

The DAA for Commercial Drones

The all-new pingRX Pro is the first purpose-built Detect and Avoid (DAA) system for professional UAS applications. With easy autopilot integration and added protection and isolation of an aircraft-aluminum housing and detachable remote mount antenna, pingRX Pro is the ideal ADS-B receiver for professional UAS operators who need reliability, rugged build quality, and flexibility for limitless UAS applications.

$349

Learn More

pingRX Pro

Learn More

pingRX Pro

$349
Learn More

The
Aviation
Standard

pingRX Pro’s ADS-B is the evolution of a lineage of certified solutions, including our manned aviation products skyBeacon and tailBeacon. Inspired by the technology used in over a half-million aircraft both manned and unmanned, pingRX Pro is the first aviation-grade Detect and Avoid solution with the heritage and integrity to back it.

Dual-band Reception

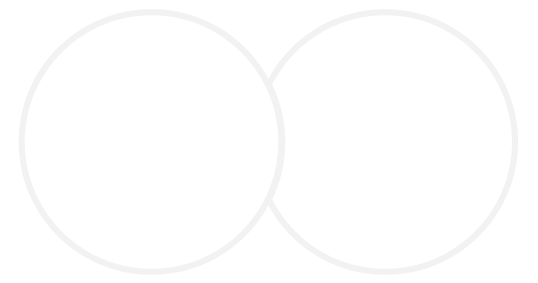

pingRX Pro is a dual-band ADS-B receiver capable of tracking aircraft on both 978MHz and 1090MHz.

Function Meets Flexibility

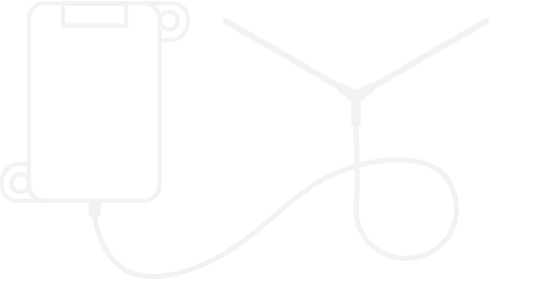

DAA solutions should fit the aircraft, not the other way around. pingRX Pro adapts to any airframe by offering an external antenna – allowing for a flexible install without sacrificing ideal placement or performance.

Simple. Fast. Precise.

PingRX Pro works with Ardupilot and PixHawk based autopilots, getting you from integration to launch in only a few lines of code. Extend pingRX Pro’s hardware integrity to the rest of your platform with Auterion Skynode, the enterprise-ready autopilot. PingRX Pro also integrates easily with custom platforms over the uAvionix Control Protocol (UCP).

Proven Detect and Avoid

ADS-B receivers have proven to be the lowest-cost, lowest-weight, and highest-performing DAA technology on the market. Every Beyond Visual Line of Sight (BVLOS) approval in the world includes ADS-B as a core component of the DAA solution. With ADS-B mandates for manned aircraft in effect or in-work worldwide, hundreds to thousands of additional aircraft are equipping each week. See how ADS-B IN stands up to other DAA technologies.

Detection Range

pingRX Pro features a maximum range of nearly 100 times any competitive solution and meets all suggested well clear distances.

360×360 Awareness

Detect and Avoid is about tracking potential threats.
pingRX Pro has eyes in all directions at all times while
other solutions are limited to a tiny directional field of view.

pingRX Pro

360°

RADAR, CAMERA, FMCW

90°

Threat Handling

With a larger 360×360 awareness and reception range, pingRX Pro handles up to 100 aircraft simultaneously.
Other DAA systems are limited to 1 – 5 aircraft.

pingRX Pro

100

RADAR, CAMERA, FMCW

1-5

Low Power Consumption

Every watt consumed by DAA means less range and payload for the mission. pingRX Pro keeps your power budget under control.

0.15 Watts

pingRX Pro


15+ Watts

Other Detect and Avoid Systems

Contact Us

Discover how pingRX Pro can help your operations.

PingRX Pro will be available Q4 2020.
Reach out for more information, quotes, or to learn more about the benefits of ADS-B on your drone.

SpecificationValue
Input Voltage / Power4-6V / 150mA
Size32x31x9mm
Weight8 grams
Receive
MTL 1090MHz
Dynamic Range
-84dBm
-81 to 0dBm
MTL 978MHz
Dynamic Range
(pingRX Pro does not receive or process FIS-B weather data)
-93dBm
-90 to -3dBm
InterfaceMavLINK Serial 57600bps
UCP 115200
