Trakr™ + FlightLine

Secure, Real-Time Drone & Aircraft Tracking for Enterprise Airspace Management

Download Trakr Brochure

Trakr

Why Trakr?

Gain complete low-altitude situational awareness with Trakr, uAvionix’s cutting-edge solution for enterprise drone operators, professional Part 107 pilots, and airspace managers.
Seamlessly integrated with the FlightLine platform, Trakr delivers private, secure drone telemetry alongside ADS-B aircraft tracking—ensuring a single, real-time view of your airspace, even beyond LTE coverage.
Unlike public Remote ID systems and other tracker solutions, Trakr’s exclusive data feeds prioritize privacy and operational security, empowering missions like Drone as First Responder (DFR), infrastructure inspection, restricted airspace management and wildfire response with unmatched control and visibility.

What is Trakr?

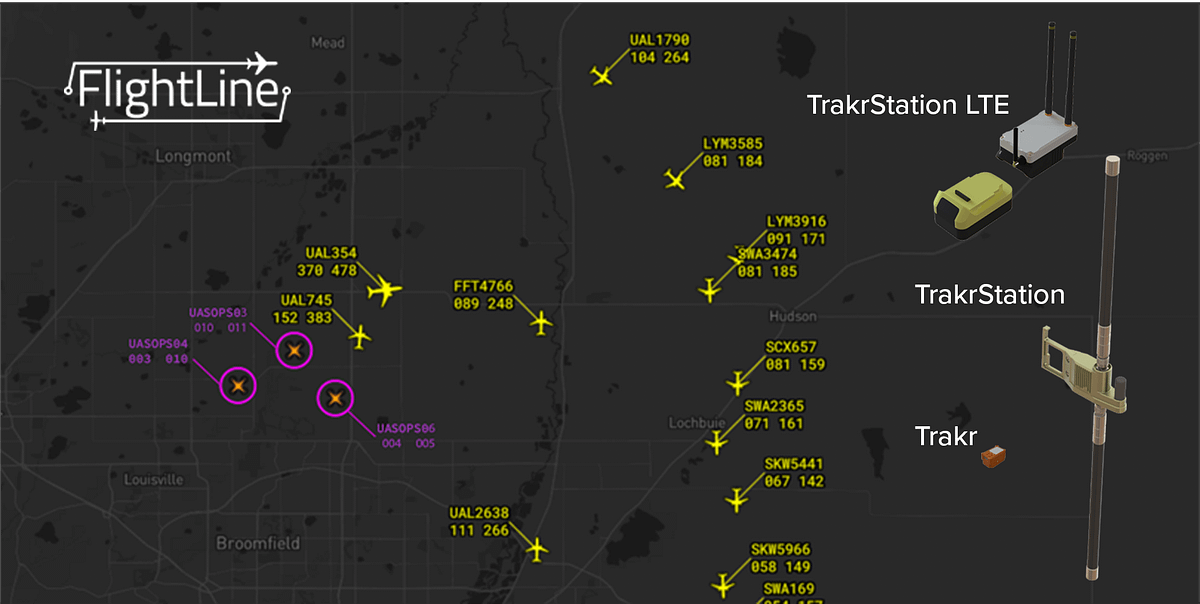

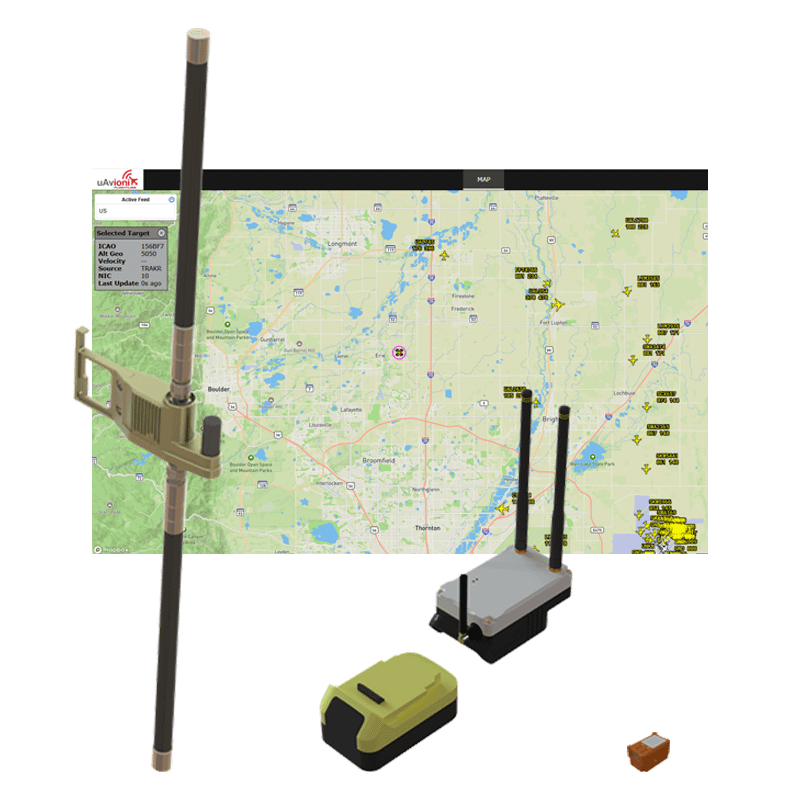

The Trakr + FlightLine components for cloud-based visualization and reporting of drone position & ADS-B traffic data

Trakr + FlightLine enables operators to securely monitor UAS operations and the surrounding airspace via the uAvionix FlightLine platform—including ADS-B equipped aircraft. The Trakr device is a compact, ultra-low SWaP transmitter specifically designed for UAS that broadcasts your drone’s real-time position data over the 915 MHz ISM band to paired TrakrStation or TrakrStationLTE recievers that connect to the FlightLine cloud-based service delivering total airspace situational awareness, mission assurance, and a clear path to compliance.

Compact. Lightweight. Essential.

Trakr is the simplest way to scale situational awareness and airspace accountability across your entire drone operation.

Component Purpose
Trakr Ultra-light, onboard USB-C rechargeable ISM Band position transmitter
TrakrStation LTE Portable, Battery-powered (rechargeable) ISM Band Receiver with LTE backhaul
TrakrStation Permanent Ground-based ISM Band Receiver
FlightLine Cloud-based visualizaiton and reporting of Trakr and ADS-B data

Secure Position Data

Position data is securely received by TrakrStations and pushed to the cloud without exposing your fleet’s flight details. All data is then displayed in the FlightLine situational awareness app — giving operators a live view of all Trakr-equipped drones in the mission area.

Portable, Rechargeable

TrakrStationLTEs are perfect for field operations. They feature all the benefits of TrakrStations—but in a portable package. They’re powered by a rechargeable battery, and broadcast your UAS position information securely to the cloud via LTE towers. No permanent infrastructure required.

Airspace Awareness

FlightLine is crucial for low altitude air traffic deconfliction, operational reporting and compliance with FAA UAS regulations. Its intuitive web-based map interface displays crewed aircraft ADS-B broadcasts and UAS positional data from Trakr devices to help keep the airspace safe for all users.

Who’s It For?

DRONE DELIVERY & LOGISTICS OPERATIONS

PUBLIC SAFETY & EMERGENCY RESPONSE

BVLOS INSPECTIONS & INFRASTRUCTURE MONITORING

AUTONOMOUS FLEET COORDINATION

DEFENSE & TACTICAL ISR DEPLOYMENTS

Trakr Technical Specifications
Name Trakr
Part Number UAV-1008429-001
Transmitter
Frequency 915 MHz (ISM Band)
Range ~3 miles at 400ft AGL
Power 0.2 Watts
Position Source
GPS Integrated u-blox GPS
Device Specifications
Input Voltage 5V
Size 23.25 x 27 x 42.83 mm
Weight 28 grams
Operating Temp -40 to 70°C
Rechargeable Battery
Operating Time Up to 90 minutes on battery (or connect to ship’s power)
Charger Type USB-C
TrakrStation Technical Specifications
Name TrakrStation
Part Number  UAV-1005539-001
Transmitter
Frequency 915 MHz (ISM Band)
Device Specifications
Size 887 x 191.18 mm
Operating Temp -40 to 70°C
TrakrStation LTE Technical Specifications
Name TrakrStation LTE
Part Number UAV-1006904-001
Transmitter
Frequency 915 MHz (ISM Band)
Power 2 Watts
Device Specifications
Size 135.2 x 60.2 x 243.93 mm
Weight 65 grams (without antennas)
Operating Temp -45 to 70°C
Rechargeable Battery
Operating Time Depends on DeWalt Battery
1.7 Ah (20V) (smallest) – upto 17 hours5 Ah – upto 50 hours8 Ah – upto 80 hours

Document Rev
Trakr User Guide – coming soon
Trakr Data Sheet A
TrakrStation Data Sheet A
TrakrStation LTE Data Sheet A

Get to know Trakr?

  • Longer range and better reliability than Remote ID

  • No public broadcasts—only your team sees your data

  • Easy to use, lightweight, and compatible with any drone

  • Supports BVLOS and complex field operations

“As the skies grow more complex at low altitudes, 100% airspace situational awareness is no longer a luxury—it’s a necessity.” – Cyriel Kronenburg, VP of UAS & Aviation Networks

Contact us to learn more about how Trakr can benefit your operations.
