AV-30-E

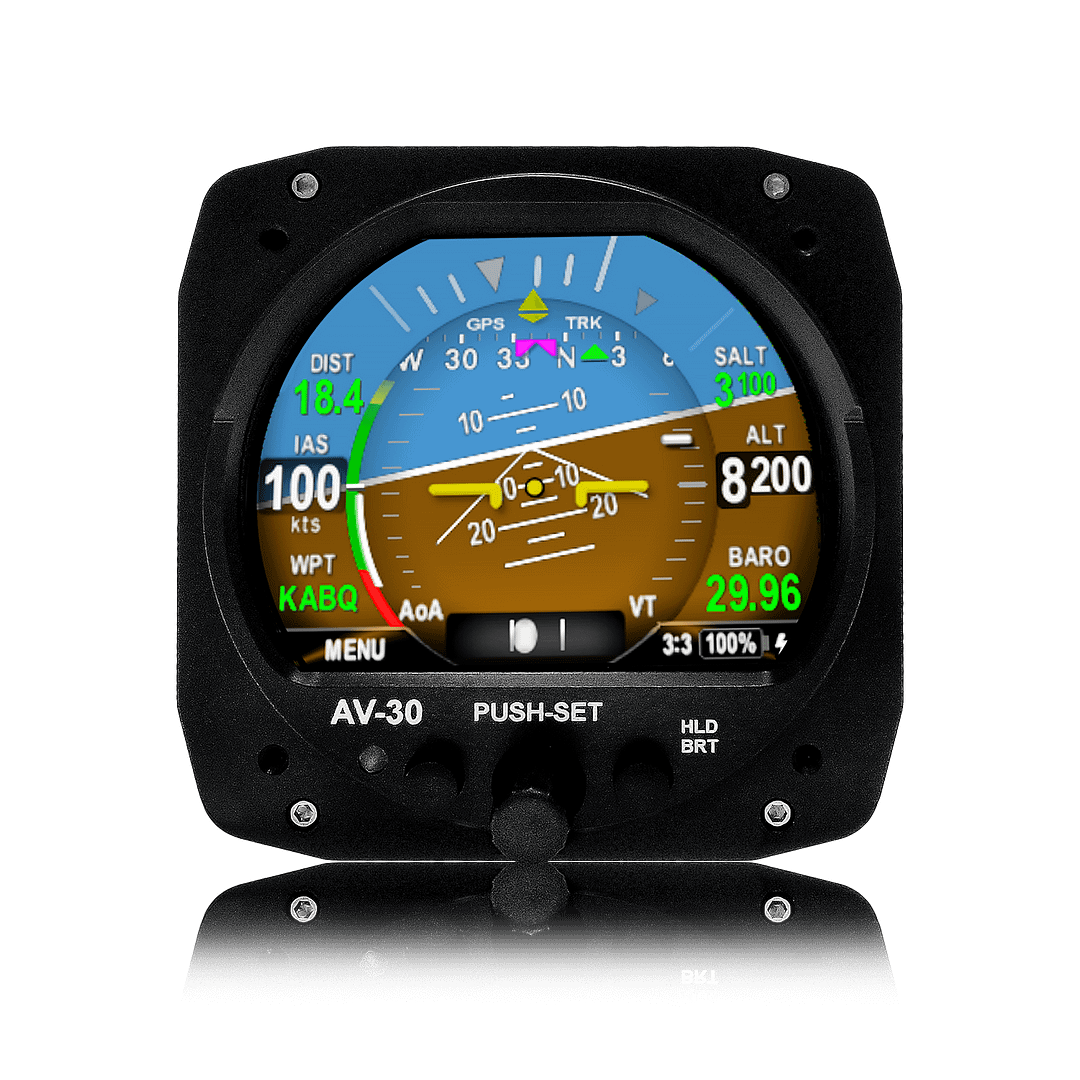

Primary Flight 3 inch Digital Display for Experimental Aircraft
Documentation & Downloads
Document | Revision | Release Date |
---|---|---|
Install Manual [PDF] | Rev J | 07/15/2024 |
Pilot Guide [PDF] | Rev K | 07/15/2024 |
AV-Link Quick Start Guide [PDF] | Rev C | 07/15/2024 |
AV-30 Quick Reference Guide [PDF] | Rev F | 07/15/2024 |
AV-30-E Windows Simulator [.exe] | 3.0.0 | 07/15/2024 |
Frequently Asked Questions
Please review the AV-30-E frequently asked questions prior to submitting a support ticket or placing a phone call.
The current AV-30-C AML applies to Part 23 single-engine aircraft operating under 300kts. You can access both searchable and downloadable versions of the AML on the AV-30-C support page.
The current AV-30-C AML applies to Part 23 single-engine aircraft operating under 300kts. We have tried to include as many of the applicable aircraft as possible. If your aircraft is not listed on the AML but does fall within the AML limitations, you may be able to obtain a field approval from your local Flight Standards District Office (FSDO). We’re also interested in adding more aircraft to the AML. Please send us the model information via this form.
The AV-30-C holds an STC-PMA with AML. The installation must be performed by a licensed aircraft technician and a 337 must be submitted as part of the installation. The AV-30-C ships with the AV-30-C, DB-15 connector, DB crimps, and a backshell for the DB connector. The DB-15 connector needs to be populated with pins based on the functions desired for the specific installation. If the aircraft is IFR certified, the pitot/static system will need checked after the AV-30-C is added to the system according to 91.411(2).
No, the initial STC will not have autopilot capability.
Autopilot integration will be accomplished in a phased approach. The initial autopilot support will be for STEC systems (which have their own roll/pitch source) and allow the heading bug on the AV-30 to drive the heading datum input on the autopilot. This interface will be accomplished with the AV-APA.
The AV-30-C is approved as a stand-alone attitude indicator, directional gyro (dual unit installation), slip-skid indicator, and as the required backup in an EFIS installation.
If the installation configuration leaves no instruments that require a vacuum source, the vacuum pump system may be removed from the aircraft via a 337 field alteration process. The procedure for removal of the vacuum system is aircraft specific and beyond the scope of the AV-30-C Installation and STC approval.
The AV-30 provides an RS-232 receive line for “aviation” or “moving map” output provided by virtually every panel mount GPS navigator in service. This data is broadcast by the GPS navigator and no data is sent from the AV-30 back to the GPS unit. NMEA is also supported, which is output by most hand-held GPS units. NMEA protocol supports baud rate speed of 4800 and 9600, while “Aviation/moving map” protocol is fixed at a 9600 baud rate.
When connected to an external GPS navigator or hand-held, AV-30 operates as a repeater display. The data provided includes current waypoint ID, distance to destination, ground speed, cross-track error, desired track, and bearing to waypoint.
This data can be overlayed in the textual fields as desired and is used to create the compass rose (GPS Track), moving map display (ARC Mode), and create the GPS HSI presentation when the AV-30 is operating as a DG instrument. When operating as an attitude indicator, it can drive the direction tape and provides a bearing-to indicator.
The AV-30-E now supports vertical navigation display with a connected AV-HSI. This feature will be available for the AV-30-C upon FAA approval.
When connected to an AV-HSI and IFR-approved navigator, the AV-30-E can be used as a primary display of navigation guidance. This capability is not yet approved on the AV-30-C. The AV-30-C is approved for installation as a primary Attitude Indicator or primary Directional Indicator. The AV-30 is capable of receiving serial GPS streams. When connected to an external GPS navigator or hand-held, AV-30 operates as a repeater display. The data provided includes current waypoint ID, distance to destination, ground speed, cross-track error, desired track, and bearing to waypoint.
Angle of attack is determined by comparing aircraft pitch to the actual flight path angle through the air. This is equivalent to the angle at which the wing is intercepting the body of air surrounding the aircraft – exactly the same as a probe based AoA system. Pitch is determined by a precision internal AHRS, and flight path angle is determined by a precision ADC (airspeed and vertical speed). The resulting angle is then augmented with G-Load, as determined by internal acceleration sensors.
For example, during a climb, if the pitch angle is 10 degrees up, and the aircraft’s flight path through the air (forward airspeed and vertical speed) is also 10 degrees up, the equivalent AoA is 0 Degrees. However, if the flight path angle through the air is only 7 degrees, then the equivalent AoA is positive 3 degrees as the wing is no longer able to maintain full lift.
Therefore, no dedicated AoA probe is required – only internal inertial and pressure sensors (8 in total). Connection to the aircraft’s pitot static system is required.
Reference Sperry Patent #3,948,096 for additional implementation details.
Yes and no. During the majority of flight conditions, they are equivalent. However, during conditions where the aircraft is moving through a mass of air that has a vertical component, the behavior is slightly different.
As vertical updrafts are rarely of concern, the scenario to look at is the downdraft during final approach. In this environment, the aircraft will sink at a rate that is not consistent with the aircraft pitch. As the algorithm utilized compares the aircraft pitch to the actual flight path through the air, this will result in an artificial positive AoA (see diagram).
A downdraft that forces a sink rate of -1000 FPM will effectively increase the current AoA by approximately 5.6 degrees (this is speed dependent).
In effect, this makes the AoA thresholds more sensitive and an alert will be generated earlier than normal – but that’s a good thing in this scenario.
If a down-draft of this magnitude is experienced, the pilot action is to add power; Similarly, if AoA exceeds the configured limit, the pilot action is also to add power. As the pilot actions are identical for both scenarios, it can be argued that the source of unexpected altitude loss (downdraft or a wing losing lift) is irrelevant. Add power.
Interestingly, if taken to the extreme, the probeless AoA system actually starts to behave like a wind-shear alerter and any downdraft that is sufficient to cause excessive pitch vs flight path angle will generate an alert – it’s effectively a sink rate alert at that point.
In a probed system, as the probe is only measuring ambient air angle and loss of altitude is not measured, this arguably advantageous behavior is not available.
Yes.
For more information on uAvionix AV-Mag see: https://uavionix.com/product/av-mag-stc/
