Reliable Compliance for Confident Flying
Meet the FAA’s Remote ID requirements effortlessly with pingRID—the compact, reliable broadcast module designed for any drone operator. Lightweight, self-powered, and straightforward to install, pingRID keeps your flights compliant by broadcasting essential flight data such as aircraft ID, location, and altitude. Stay airborne with trusted avionics from uAvionix, whether you’re flying recreationally or commercially under Part 107 regulations.
Primary Features

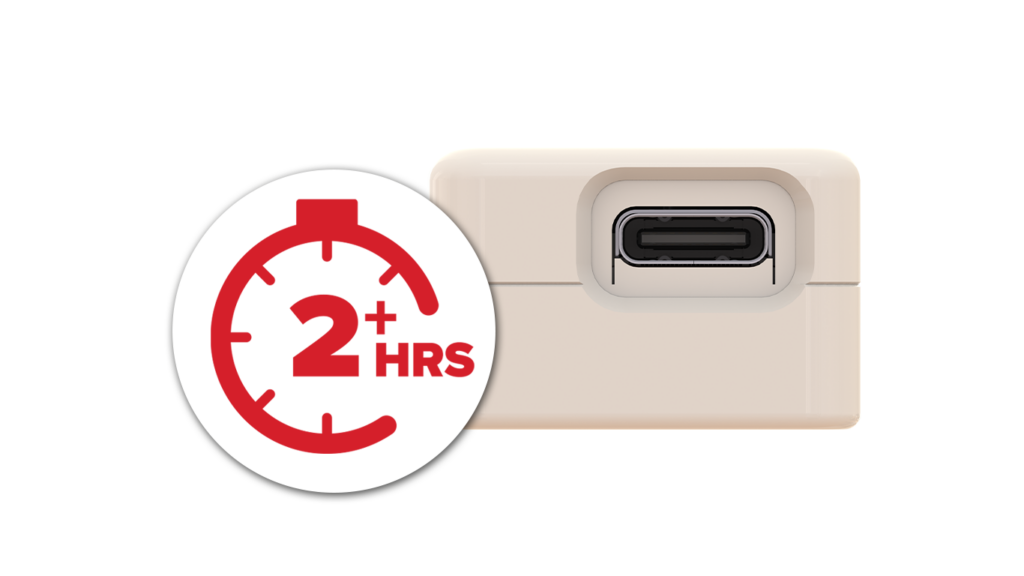

2+ Hour Battery Life
USB-C Charging with Long-lasting power to accommodate extensive flights.

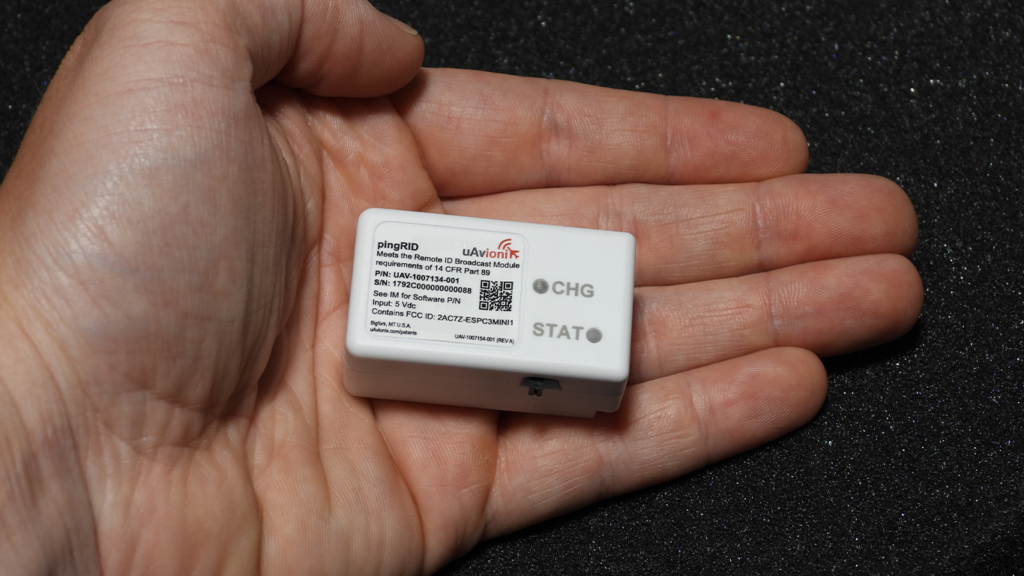

Ultra-Lightweight Design
Only 21 grams, minimizing impact on your drone’s performance.

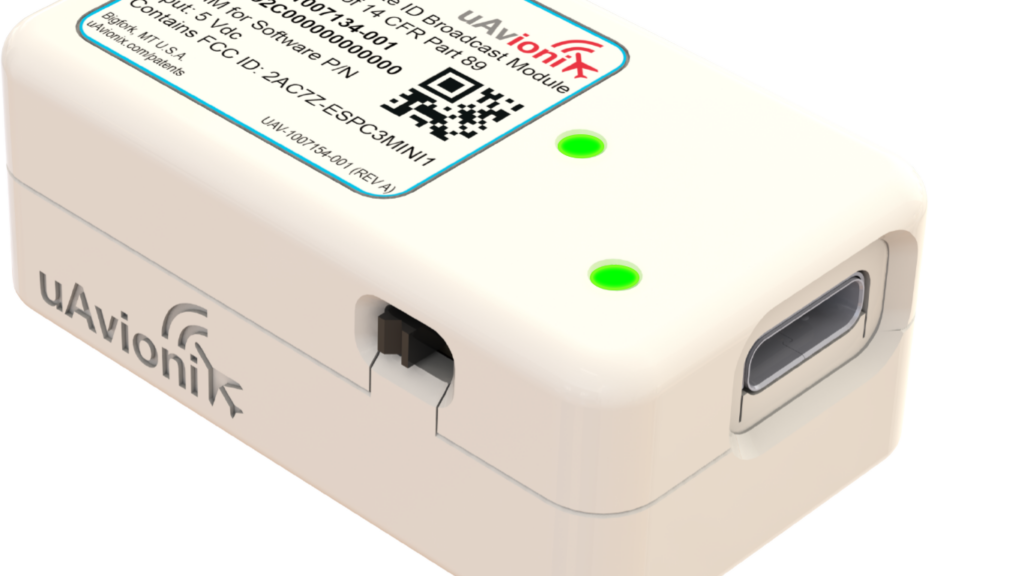

Intuitive LED Indicators
Clear operational status through charge and flight readiness indicators.
Additional Features
Built for Performance and Ease
FAA Approved
Meets FAA 14 CFR Part 89 and ASTM Remote ID Standards.
Quick Attachment
Effortless mounting via included 3M Dual-Lock™ fasteners.
GNSS Precision
High-accuracy GPS with rapid location lock.
Dual Bluetooth Protocols
Compatible with Bluetooth 4 Legacy and Bluetooth 5 Long Range for enhanced connectivity.
No Setup Required
Preconfigured and ready-to-fly straight out of the box—no additional apps or integration required.
Maintenance-Free Design
Robust internal system requires minimal maintenance.
FAQ's
Knowledge Base
- Aircraft Compatibility and Installation
- FAA Requirements and Compliance
- Operation and Usage
- Maintenance and Troubleshooting
Which drones are compatible with pingRID?
pingRID is universally compatible and can be attached to nearly any drone or UAV airframe.
How do I install pingRID onto my drone?
Attach the module using the included 3M Dual-Lock™ fastener, ensuring the label faces upward to achieve optimal GPS reception.
Does pingRID need an external power source?
No external power source is required. pingRID includes an internal rechargeable Li-ion battery. Optionally, it can be powered continuously via USB-C from your drone’s power supply.
What FAA regulations does pingRID comply with?
pingRID meets FAA Part 89 Remote ID regulations and ASTM F3411-22a standards. It is accepted by the FAA under Means of Compliance (MOC) RID-ASTM-F3586-22-NOA-22-01.
Do I have to register pingRID with the FAA?
Yes. Assign your pingRID’s unique serial number to your drone’s registration through the FAA DroneZone.
What happens if I fly without Remote ID?
Without compliant Remote ID, you are restricted to flying in FAA-recognized identification areas (FRIAs). Operating elsewhere without Remote ID compliance can result in regulatory action.
How long does pingRID's battery last during operation?
Over 2 hours on a single full charge.
How can I tell when my pingRID is ready to fly?
The status LED will indicate solid green once a valid GNSS position lock is acquired, signaling readiness for takeoff.
Can pingRID be charged while flying?
Yes, pingRID can be continuously powered and charged during flight via USB-C from your drone’s onboard power supply.
How do I maintain pingRID?
pingRID requires minimal maintenance, primarily cleaning with a soft microfiber cloth. It is not waterproof and should not be operated in inclement weather.
My pingRID shows a rapidly flashing LED. What should I do?
Four rapid LED flashes indicate a self-test error. If this persists after power cycling the device, please contact uAvionix support.
How can I check my pingRID’s software version?
Connect via Wi-Fi and access the internal web interface at http://192.168.4.1 to view the current software part number and version.
Documentation
pingRID Manuals & Guides
Technical Specifications
| Specification | Value |
|---|---|
| Compliance | FAA 14 CFR Part 89
DoC RID000000132 ASTM F3411-22a |
| Protocols | Bluetooth 4 Legacy
Bluetooth 5 Long Range |
| Frequency | 2402 MHz to 2480 MHz |
| Size | 25.40 x 16.63 x 43.42 mm |
| Weight | 21 grams |
| Charging Connector | USB-C |
| Battery | Internal Li-ion (740 mWh) |
| Indicators | Charge LED, Status LED |
