Explore Accuracy Above All
Explore new heights of reliability and precision with the truFYX EXT, the external-mounted GPS that brings certified aviation-grade technology to your fleet. Whether navigating through urban skies or conducting critical operations, truFYX EXT ensures every mission is guided by the highest standards of accuracy and integrity. Designed for diverse aircraft types, this compact solution empowers your operations with fault detection and exclusion technology trusted by thousands of manned aircraft, providing a new benchmark in GPS reliability.
Primary Features
Precision, Integrity, and Reliability for Every Flight

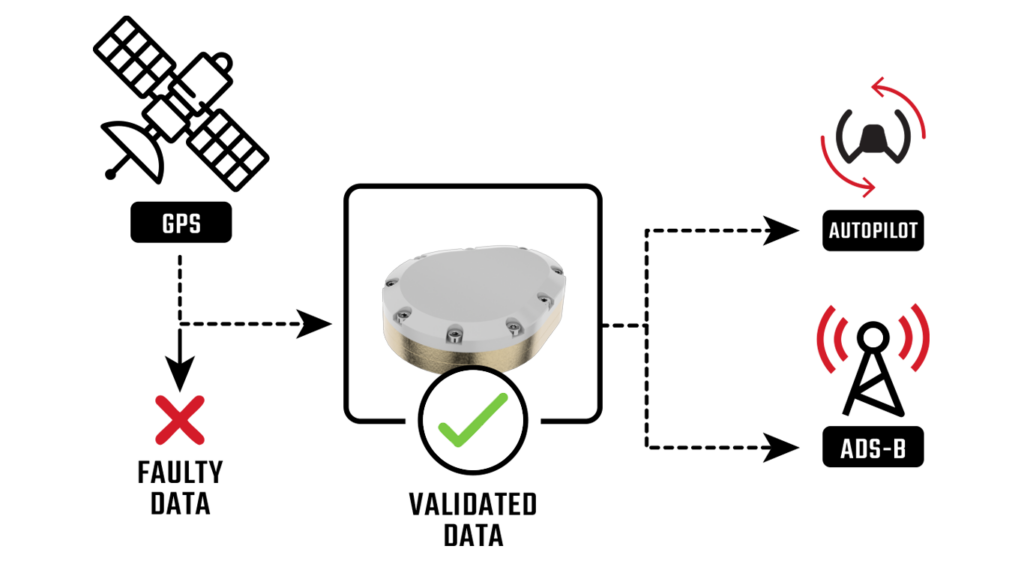

Advanced Fault Detection and Exclusion Technology
Utilizes advanced fault detection and exclusion technology that’s trusted by over 20,000 manned aircraft. This tech ensures that the autopilot and ADS-B systems rely on the highest integrity data available, providing safety in all operational conditions.

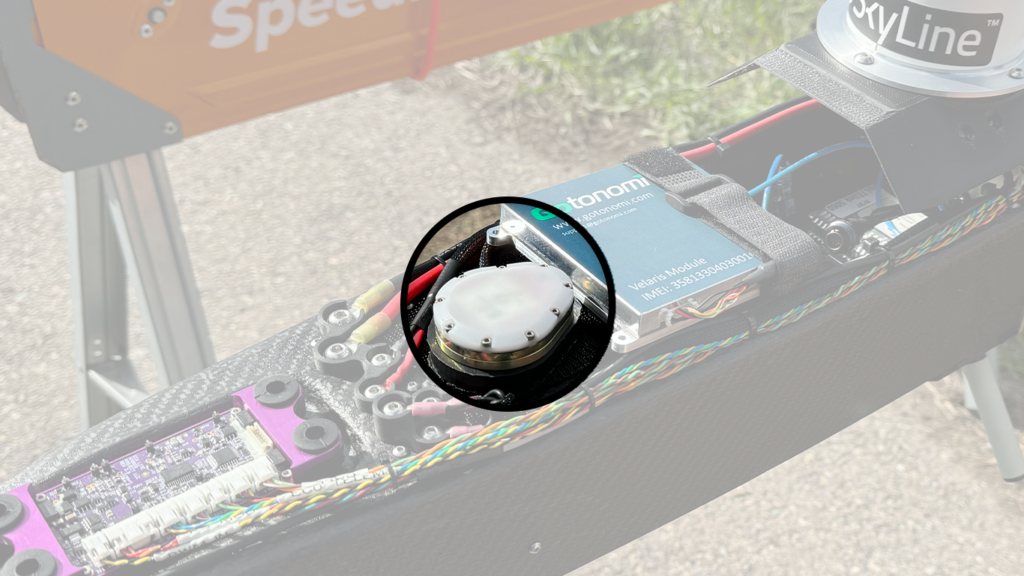

Compact and Lightweight
Weighs only 49 grams and fits easily in the palm of your hand, making it perfect for a variety of airframes without adding significant weight.

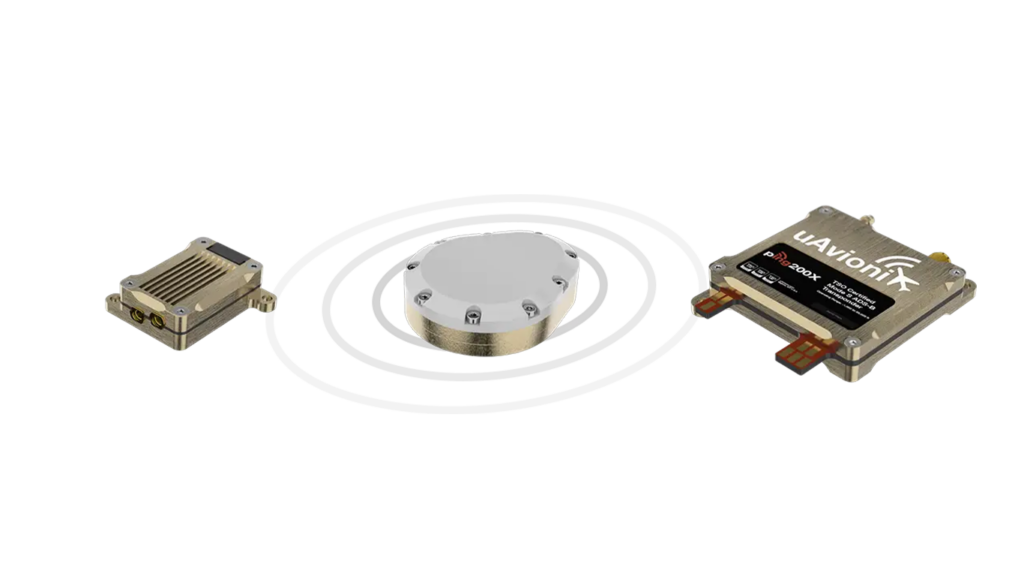

Flexible Architecture
Easy integration with popular autopilots and approved for transponder and ADS-B solutions, supporting a wide range of unmanned aerial systems and urban air mobility platforms.
Additional Features
Precision, Integrity, and Reliability for Every Flight
Designed for Various Missions
Optimally designed for urban air mobility, agriculture, and search and rescue missions, where reliability can make a significant difference in operational outcomes.
Aviation Integrity and Design Assurance
Inherits the high aviation integrity and design assurance of the TSO-Certified truFYX. Now available as an external-mounted GPS to support diverse aircraft types, ensuring reliable mission-critical positioning.
Resistance to GPS Errors
Features enhanced resistance to GPS constellation errors with receiver autonomous integrity monitoring and fault detection, automatically excluding any suspect satellites from position calculations.
High Environmental Resistance
Tested to DO-160G environmental standards, ensuring reliable operation under various challenging conditions.
Multiple Protocols Support
Supports industry-standard NMEA or MAVLink protocols, ensuring compatibility with a broad array of existing systems.
Performance-Based Navigation (PBN)
Offers precise navigation capability with a clear understanding of the trust level in the calculated positions. Ideal for critical and high-accuracy navigation tasks.
FAQ's
Knowledge Base
- Aircraft Compatibility
- FAA Requirements
- Installation
- Operation
- Maintenance
- Troubleshooting Tips and Tricks
What types of aircraft is truFYX EXT compatible with?
truFYX EXT is designed to support all types of aircraft, from small unmanned aerial vehicles to larger manned aircraft, thanks to its external mount design.
Does truFYX EXT meet FAA requirements for ADS-B systems?
Yes, it meets performance standards of TSO-C145e Class Beta-1 for ADS-B surveillance and navigation.
How do I install truFYX EXT on my aircraft?
truFYX EXT is designed for easy installation with minimal wiring and is compatible with various mounting options to suit different airframe configurations.
What protocols does truFYX EXT support?
truFYX EXT supports both NMEA 0183 and MAVLink protocols, allowing for flexible integration with various autopilot systems.
What maintenance is required for truFYX EXT?
truFYX EXT requires minimal maintenance. Regular firmware updates and occasional physical inspections are recommended to ensure optimal performance.
What should I do if truFYX EXT is not acquiring a GPS signal?
Ensure that truFYX EXT has a clear view of the sky and check for any obstructions. Verify all connections and settings according to the installation guide. If problems persist, contact support for further assistance.
Documentation
Manuals and Guides
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | UAV-1004957-001 |
| GPS L1C/A w. SBAS | 12 GPS Channels 3 SBAS Channels |
| HPA / VPA | 5 m / 7 m |
| Velocity Accuracy | 3 m/s |
| Time Accuracy | 30 ns |
| Update Rate | 5 Hz |
| SIL/SDA | 3/2 |
| Sensitivity | |
| Acquisition | -148 dBm |
| Tracking | -167 dBm |
| Electrical Characteristics | |
| Input Power | 5.5-31V, 350mW |
| Mechanical Characteristics | |
| Size | 55.85×46.85×15.50 mm |
| Weight | 49 grams |
| Interfaces | |
| RS-232 | 115200bps |
| Protocol | NMEA 0183 + RAIM or MAVLink |
| Time Pulse | RS-232, 1pps |
