Unlock Advanced IFR Navigation

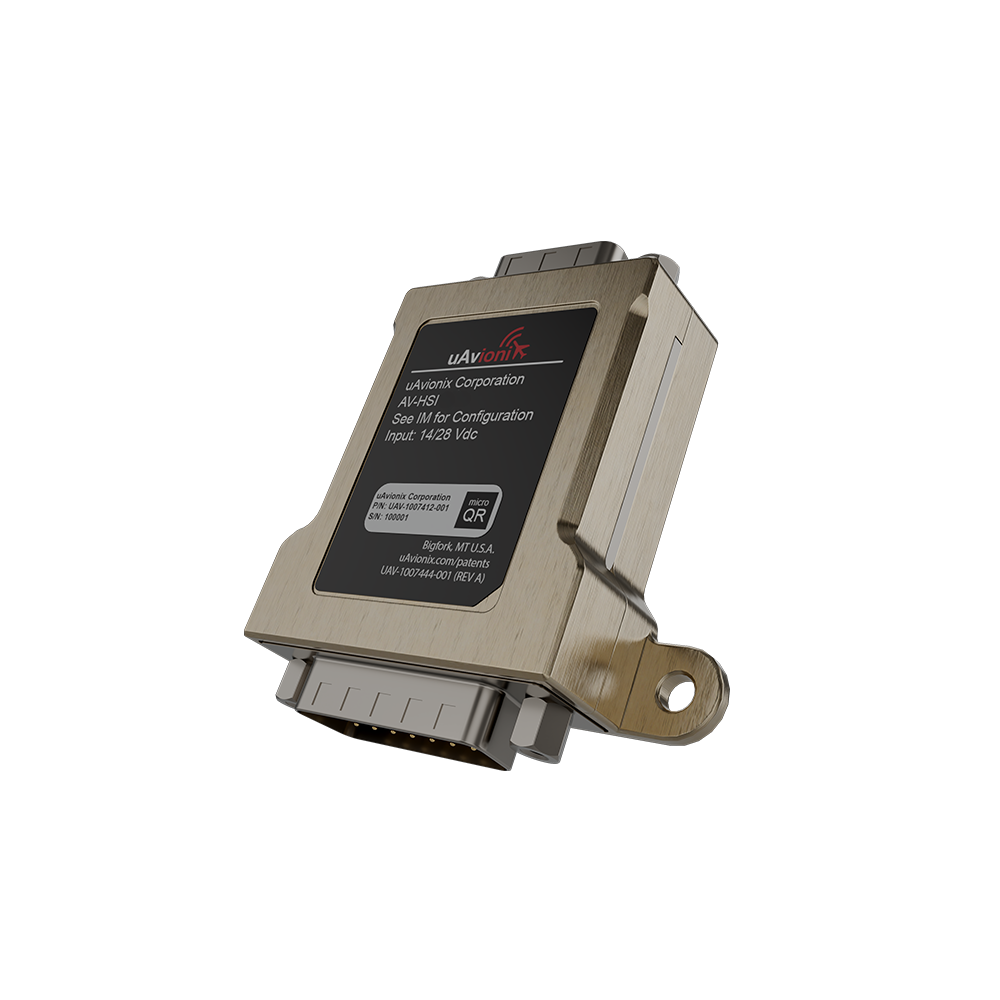

The AV-HSI PMA by uAvionix is a cutting-edge accessory designed to enhance navigation capabilities within the General Aviation sector. This device interfaces with the AV-30 to provide essential course and glideslope guidance for both ILS (Instrument Landing System) and LPV (Localizer Performance with Vertical Guidance) approaches. Equipped with three ARINC 429 channels and four serial ports, the AV-HSI PMA not only connects to a variety of GPS navigators and NAV/COMM radios but also acts as a central hub to streamline and synchronize data across multiple AV-30 displays in the cockpit. Whether flying through challenging approaches or managing routine flights, the AV-HSI PMA ensures pilots have reliable and precise navigational aids at their fingertips, enhancing safety and efficiency in every flight.
Primary Features

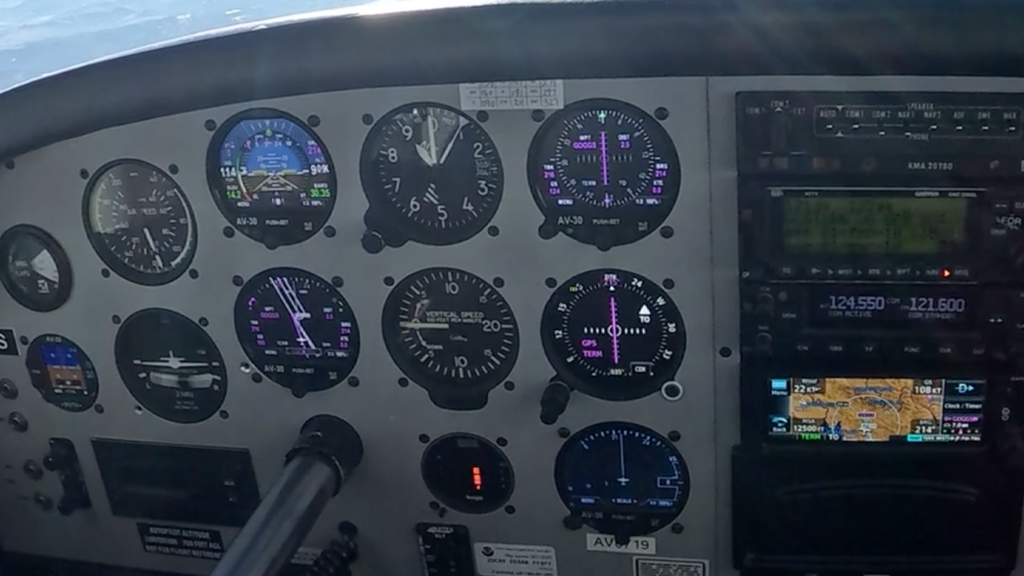

Multi-AV-30 Support
Allows multiple AV-30s within the same aircraft to receive identical navigational data, enhancing pilot awareness and reducing workload.

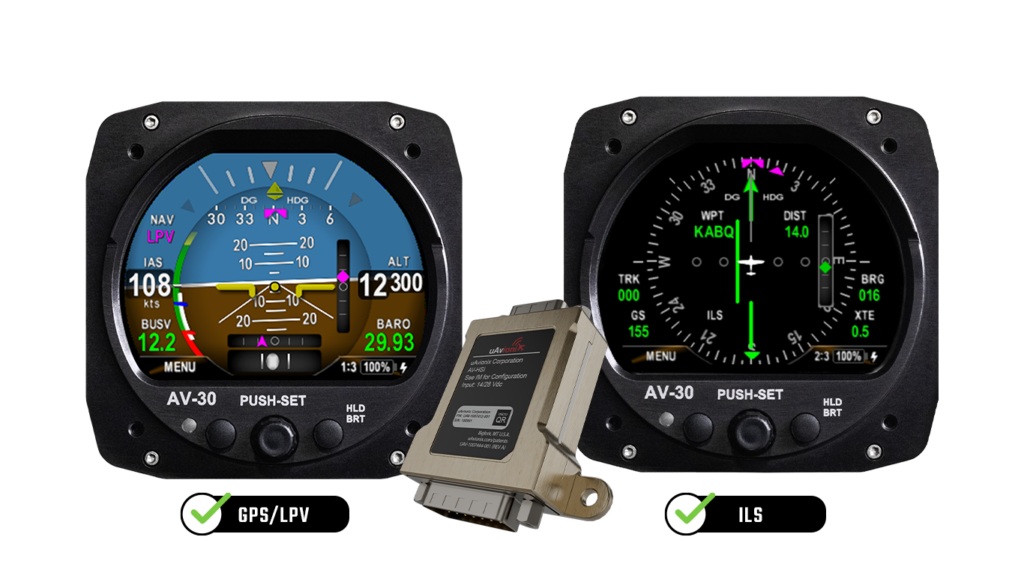

Dual Mode Functionality
Supports both GPS and ILS precision instrument approaches, offering flexibility in navigation.
Additional Features
Expanded Capabilities
Comprehensive Interfacing
Integrates seamlessly with most panel-mounted GPS navigators via three ARINC 429 channels (2 RX, 1 TX), facilitating essential course and glideslope guidance during precision instrument approaches and navigation.
Easy Installation and Setup
Designed to interface effortlessly with existing aircraft systems, minimizing installation complexity.
Future-Proof Navigation
Adds the capability to interface with both Analog and Digital sources, providing forward-looking expansion options to advance the aircraft’s capability as its mission scope advances.
Multiple Device Connectivity
Includes four serial ports allowing connections to NAV/COMM radios and acts as a hub, enabling synchronized navigation guidance across multiple AV-30 units.
Synchronized Aircraft Data
Facilitates the synchronization of barometric and heading bug settings as well as Outside Air Temperature (OAT) data across connected AV-30 displays.
Enhanced Navigation Compatibility
Ready for advanced approaches like LPV, enhancing navigation precision and safety.
FAQ's
Knowledge Base
- Aircraft Compatibility
- FAA Requirements
- Installation
- Operation
- Maintenance
- Troubleshooting Tips and Tricks
- Supported Devices
What types of aircraft are compatible with the AV-HSI PMA?
The AV-HSI PMA is designed for general aviation aircraft equipped with an AV-30-C. Please consult our compatibility list or contact customer support for specific model compatibility.
Does the AV-HSI PMA meet FAA requirements?
Yes, the AV-HSI PMA is designed to meet or exceed FAA requirements for navigation devices. Specific certifications can be found on our product specifications page.
How is the AV-HSI PMA installed?
Installation involves interfacing the AV-HSI PMA with the AV-30 and your aircraft’s existing NAV/COMM and GPS systems. We recommend installation by a certified technician.
How do I operate the AV-HSI PMA once installed?
The AV-HSI PMA is operated through the AV-30 interface. Navigation and approach settings can be adjusted directly via the AV-30 panel.
What maintenance is required for the AV-HSI PMA?
Regular maintenance checks should include verifying the integrity of connections and ensuring the firmware is up to date. Consult the maintenance manual for detailed procedures.
What should I do if the AV-HSI PMA is not displaying navigation data correctly?
Ensure all connections are secure and the system is configured correctly. If issues persist, reboot the system and check settings. Contact support if the problem continues.
Supported GPS Navigators:
- Avidyne IFD 410/440 and 510/540/545
- Garmin GPS 400(w)/GNC 420(w)
- Garmin GNS 430(w)/530(w)
- Garmin GTN 650(xi)/750(xi)
- Garmin GPS 175/GNC 355/GNX 375
- Garmin GPS 155XL/300XL
Supported NAV/COMM:
- Avidyne IFD 440/540/550
- Garmin GNS 430(w)/530(w)
- Garmin GNC-215
- Garmin GTN 650(xi)/750(xi)
- Garmin GNC 255
- Garmin/Apollo SL30
- Trig TX56(a)
Supported Autopilots:
- Trio Pro Pilot
- TruTrak Vizion 385/PMA
- Bendix King Aerocruze 100/xCruze 100
