AV-30-C

Primary Flight 3 inch Digital Display

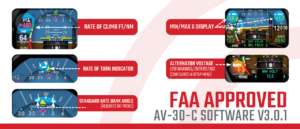

Product Overview
Product Specifications

Service Bulletins

There are no Service Bulletins

Support Articles

There are no Support Articles

Documentation

DocumentRevisionRelease Date
STC SA00410BO Certificate [PDF]08/31/2020
AV-30-C Approved Model List [PDF]Rev C08/31/2020
Install Manual [PDF]Rev C08/31/2020
Pilot Guide [PDF]Rev B08/31/2020
AV-30-C Flight Manual Supplement [PDF]Rev C08/31/2020
Continued Airworthiness Manual [PDF]Rev A08/31/2020
AV-30-C Permission to Use STC [PDF]Rev A08/31/2020
AV-30-C Master Drawing List [PDF]Rev B08/31/2020

Approved Model List

The complete authorized AML is available via the documentation links above. The searchable table below is for reference only.

Suggest an aircraft to be added to the AML here.

Frequently Asked Questions

Please review the AV-30-C frequently asked questions prior to submitting a support ticket or placing a phone call.

Which aircraft are on the AML?2020-08-31T21:24:31-06:00

The current AV-30-C AML applies to Part 23 single-engine aircraft operating under 200kts.  You can access both searchable and downloadable versions of the AML on the AV-30-C support page.

What are my options if my aircraft is not listed on the AML?2020-08-31T21:41:12-06:00

The current AV-30-C AML applies to Part 23 single-engine aircraft operating under 200kts.  We have tried to include as many of the applicable aircraft as possible.  If your aircraft is not listed on the AML but does fall within the AML limitations, you may be able to obtain a field approval from your local Flight Standards District Office (FSDO).  We’re also interested in adding more aircraft to the AML.  Please send us the model information via this form.

What is required for an AV-30-C installation?2020-08-31T21:37:02-06:00

The AV-30-C holds an STC-PMA with AML. The installation must be performed by a licensed aircraft technician and a 337 must be submitted as part of the installation. The AV-30-C ships with the AV-30-C, DB-15 connector, DB crimps, and a backshell for the DB connector. The DB-15 connector needs to be populated with pins based on the functions desired for the specific installation. If the aircraft is IFR certified, the pitot/static system will need tested and certified after the AV-30-C is added to the system.

Will the initial STC have autopilot compatibility?2019-10-08T15:08:44-06:00

No, the initial STC will not have autopilot capability.

Autopilot integration will be accomplished in a phased approach. The initial autopilot support will be for STEC systems (which have their own roll/pitch source) and allow the heading bug on the AV-30 to drive the heading datum input on the autopilot. This interface will be accomplished with the APA-MINI converter. Follow on autopilot integration will occur over time, with most likely the Century systems first. These interfaces provide roll and pitch, in addition to the heading datum, to the autopilot. This interface is accomplished with the APA-10 converter. The APA-10 converter also provides ARINC 429 interface capability, which allows full vertical and lateral deviations from a digital navigational radio to be displayed. The AV-30 display component is provisioned for these interfaces, but will require a software update with the applicable autopilot adapter becomes available.

Can the AV-30 replace my mechanical AI / Direction Indicator / Turn Coordinator?2020-08-31T21:52:39-06:00

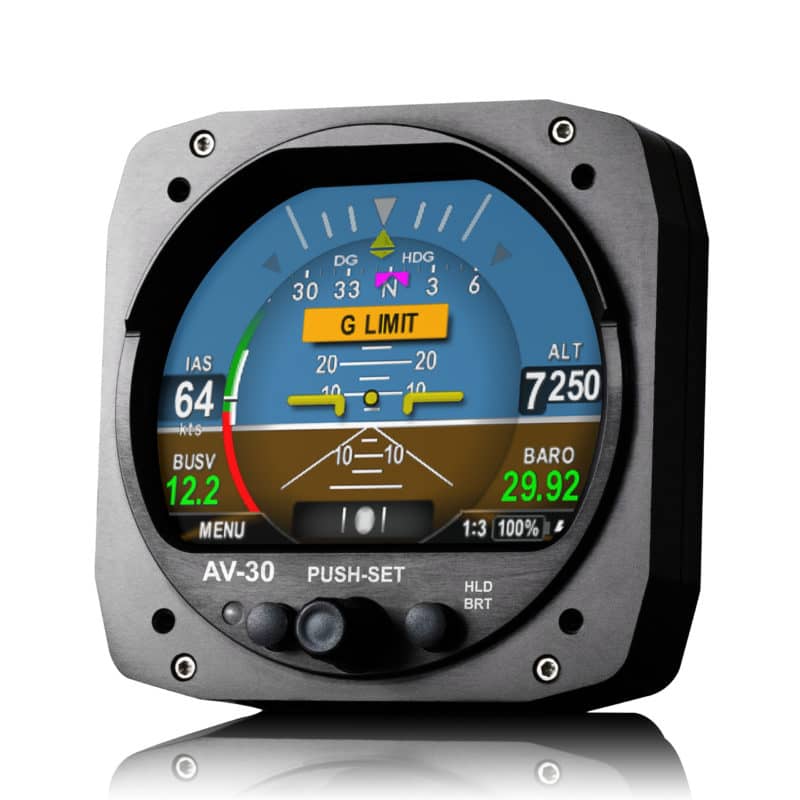

The AV-30-C is approved as a stand-alone attitude indicator, directional gyro (dual unit installation), slip-skid indicator, and as the required backup in an EFIS installation.

If the installation configuration leaves no instruments that require a vacuum source, the vacuum pump system may be removed from the aircraft via a 337 field alteration process. The procedure for removal of the vacuum system is aircraft specific and beyond the scope of the  AV-30-C Installation and STC approval.

What level of GPS integration is supported?2020-08-31T21:15:36-06:00

The AV-30 provides an RS-232 receive line for “aviation” or “moving map” output provided by virtually every panel mount GPS navigator in service. This data is broadcast by the GPS navigator and no data is sent from the AV-30 back to the GPS unit. NMEA is also supported, which is output by most hand-held GPS units. NMEA protocol supports baud rate speed of 4800 and 9600, while “Aviation/moving map” protocol is fixed at a 9600 baud rate.

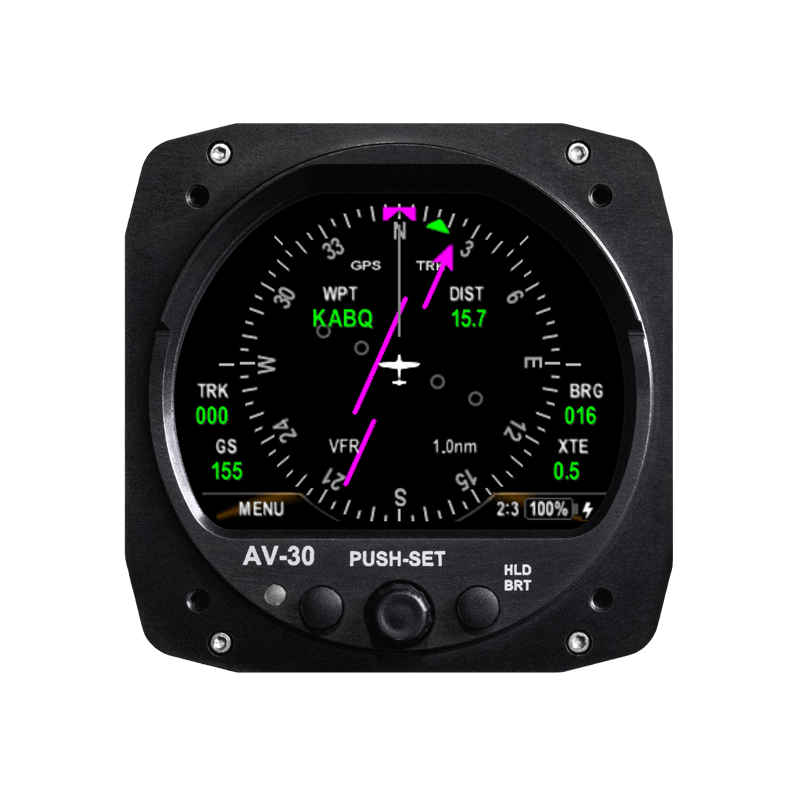

When connected to an external GPS navigator or hand-held, AV-30 operates as a repeater display. The data provided includes current waypoint ID, distance to destination, ground speed, cross-track error, desired track, and bearing to waypoint.

This data can be overlayed in the textual fields as desired and is used to create the compass rose (GPS Track), moving map display (ARC Mode), and create the GPS HSI presentation when the AV-30 is operating as a DG instrument. When operating as an attitude indicator, it can drive the direction tape and provides a bearing-to indicator.

The AV-30 does not currently support vertical navigation display, but this feature will be introduced with the APA-10 autopilot interface box.

How is “Probeless”Angle of Attack Determined?2019-10-08T15:08:02-06:00

Angle of attack is determined by comparing aircraft pitch to the actual flight path angle through the air. This is equivalent to the angle at which the wing is intercepting the body of air surrounding the aircraft – exactly the same as a probe based AoA system. Pitch is determined by a precision internal AHRS, and flight path angle is determined by a precision ADC (airspeed and vertical speed). The resulting angle is then augmented with G-Load, as determined by internal acceleration sensors.

For example, during a climb, if the pitch angle is 10 degrees up, and the aircraft’s flight path through the air (forward airspeed and vertical speed) is also 10 degrees up, the equivalent AoA is 0 Degrees. However, if the flight path angle through the air is only 7 degrees, then the equivalent AoA is positive 3 degrees as the wing is no longer able to maintain full lift.

Therefore, no dedicated AoA probe is required – only internal inertial and pressure sensors (8 in total). Connection to the aircraft’s pitot static system is required.

Reference Sperry Patent #3,948,096 for additional implementation details.

Does the Probeless AoA behave exactly like the probed system?2019-10-08T15:07:54-06:00

Yes and no. During the majority of flight conditions, they are equivalent. However, during conditions where the aircraft is moving through a mass of air that has a vertical component, the behavior is slightly different.

As vertical updrafts are rarely of concern, the scenario to look at is the downdraft during final approach. In this environment, the aircraft will sink at a rate that is not consistent with the aircraft pitch. As the algorithm utilized compares the aircraft pitch to the actual flight path through the air, this will result in an artificial positive AoA (see diagram).

A downdraft that forces a sink rate of -1000 FPM will effectively increase the current AoA by approximately 5.6 degrees (this is speed dependent).

In effect, this makes the AoA thresholds more sensitive and an alert will be generated earlier than normal – but that’s a good thing in this scenario.

If a down-draft of this magnitude is experienced, the pilot action is to add power; Similarly, if AoA exceeds the configured limit, the pilot action is also to add power. As the pilot actions are identical for both scenarios, it can be argued that the source of unexpected altitude loss (downdraft or a wing losing lift) is irrelevant. Add power.

Interestingly, if taken to the extreme, the probeless AoA system actually starts to behave like a wind-shear alerter and any downdraft that is sufficient to cause excessive pitch vs flight path angle will generate an alert – it’s effectively a sink rate alert at that point.

In a probed system, as the probe is only measuring ambient air angle and loss of altitude is not measured, this arguably advantageous behavior is not available.

Does the AV-30 support a magnetometer?2019-10-08T15:08:17-06:00

By default, the AV-30 is a non-slaved DG. The good news it that this reduces installation complexity dramatically (no GPS antennas required, no remote mount magnetometers, no field mapping, no calibration).

Power and ground are the only required connections when the unit is installed as a DG.

The bad news is that it operates the same as a non-slaved DG. On power up, a minor heading adjustment will be required. (last known heading is saved). During flight, it will require minor corrections.

When interfaced to a GPS Navigator, the DG can optionally operate in Track mode and no corrections will be required. For day-to-day-operations, GPS track mode is generally preferred over heading.

Occasionally when actual magnetic heading is required (ATC clearances in large cross-wind environments), the non-slaved DG is available, or simply use your wet compass for those operations.

The system hardware is architected to support a remote magnetometer in the future.
