ping200XR TSO
ping200XR TSO - Image 2

ping200XR TSO

SKU: UAX-90111-01

$5,500

Efficient Airspace Access for Unmanned Aircraft

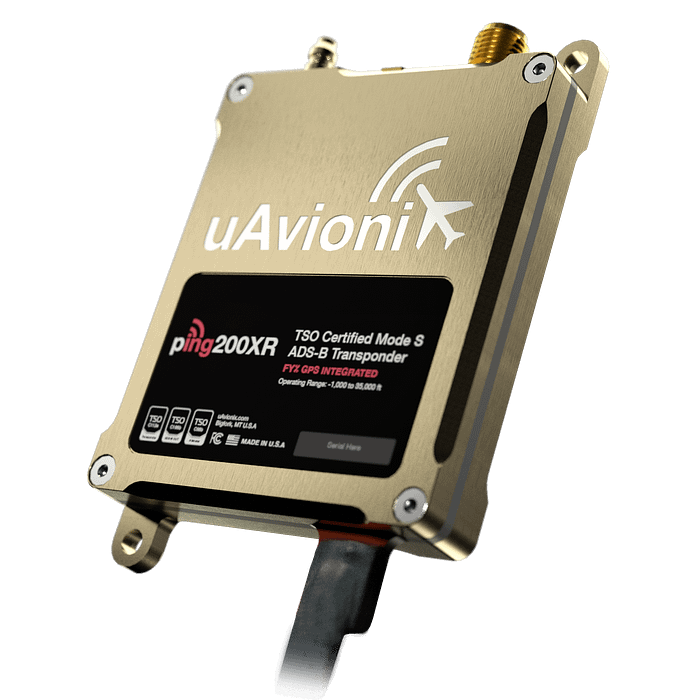

ping200XR TSO is a powerful, ultra-lightweight Mode S ADS-B transponder with an integrated TSO-certified aviation GPS. Specially designed for unmanned aircraft, ping200XR enables seamless entry into controlled airspace and ensures global regulatory compliance. Its advanced technology guarantees visibility to Secondary Surveillance Radar (SSR), Traffic Collision Avoidance Systems (TCAS), and ADS-B IN receivers worldwide.

  • Product Details

    ping200XR TSO combines the technology of the TSO-certified ping200X transponder with an internal TSO-certified aviation GPS. Enabling airspace access, regulator, and Air Navigation Service Provider (ANSP) acceptance worldwide, ping200XR TSO enables your aircraft to be detected by Secondary Surveillance Radar (SSR), Traffic Collision Avoidance Systems (TCAS), and ADS-B receivers.

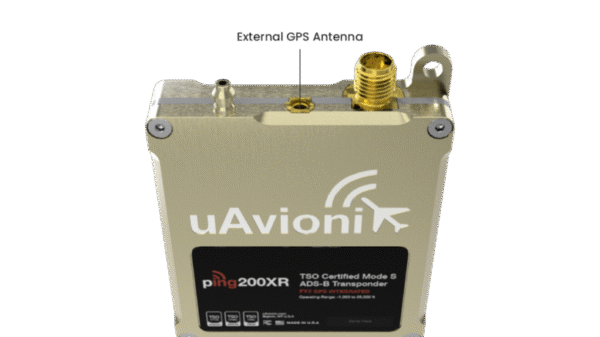

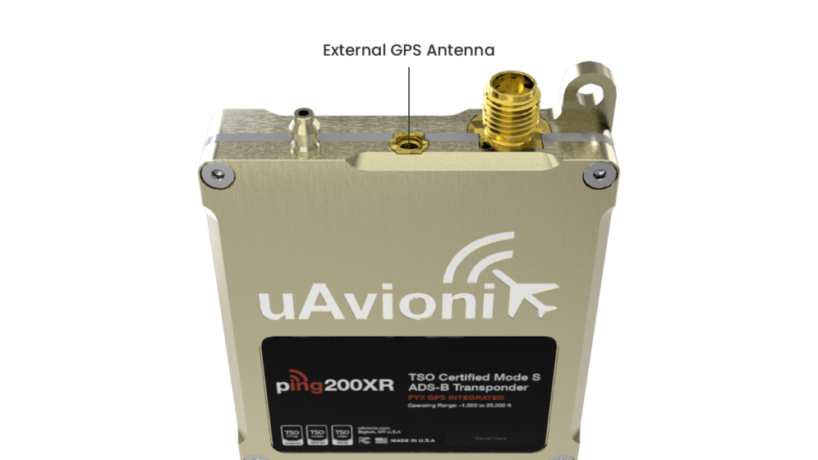

    ping200XR TSO does NOT include the GPS antenna.  A GPS antenna with MMCX connector is required for installation. Specifications are available in the User and Installation Guide.

    GPS Antenna UAV-1007165-001 is available for non-certified airframes.
    The ADS-B pingAntenna SMA 1090MHz is available for non-certified airframes.

  • What's In The Box
    • ping200XR TSO device
    • ping200XR TSO Top Level Assembly
    • Getting Started Card, ping200XR
    • Certificate of Conformance, ping200XR

Primary Features

  • Compact and Efficient:

    Weighing only 52 grams and drawing just 1.5 Watts, it surpasses heavier traditional transponders, ideal for Class 1 and 2 sUAS.

  • TSO Certified Integration:

    Combines Mode S ADS-B transponder and truFYX TSO SBAS GPS receiver, certified to RTCA DO-229E and TSO-C145e standards, ensuring compliance with global controlled airspace requirements.

  • Versatile Autopilot Compatibility

    Seamless integration with leading autopilot systems, enabling direct control via ground control station (GCS) or easy payload operation with uAvionix mini-controller.

  • Versatile Integration

    Paired with the truFYX SBAS GPS, ping200X delivers TSO-certified SIL 3 GPS data ensuring high accuracy and reliability for ADS-B OUT.

1 / 4

Additional Features

Integration and Flexibility

Comprehensive Mode Functionality

Fully configurable Mode A, C, S, and Extended Squitter (ES) functionality.

High-Reliability GPS

SIL 3 GPS integrity level ensures high-reliability positioning data.

Precision Altitude Sensing

Highly accurate static pressure sensor up to 35,000 ft.
