AV-20-E
SKU: UAX-90062
$895On sale price $806
Primary Features
-

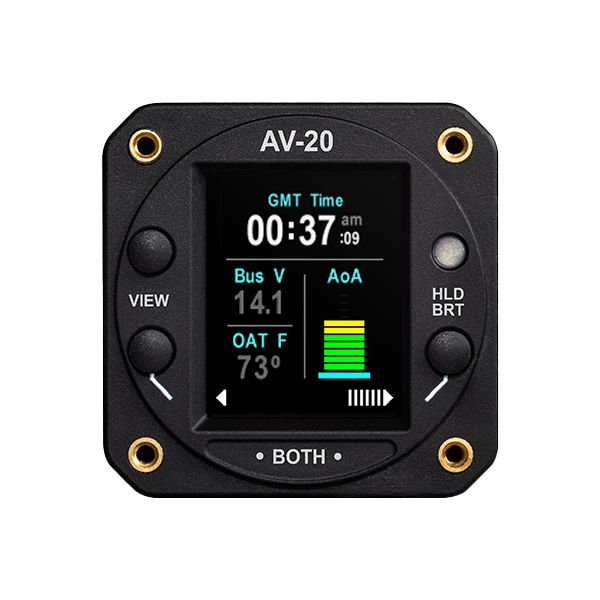

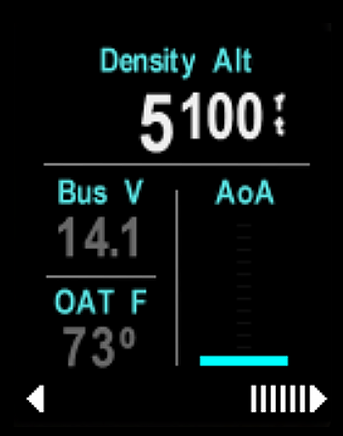

Customizable Display - Don't Just Settle for a Clock
AV-20 is available for certified and experimental aircraft as a NORSEE certfied clock replacement that puts 12 functions at your fingertips. From Flight and Engine timers to bus voltage and Audible AoA / G-limit alerts, it’s the perfect, no compromise upgrade to your panel.
-
Say Goodbye to Glare
With a matte display, the AV-20 is visible in direct sunlight and automatically adjusts brightness to ambient light giving the clarity you need at a glance.
-

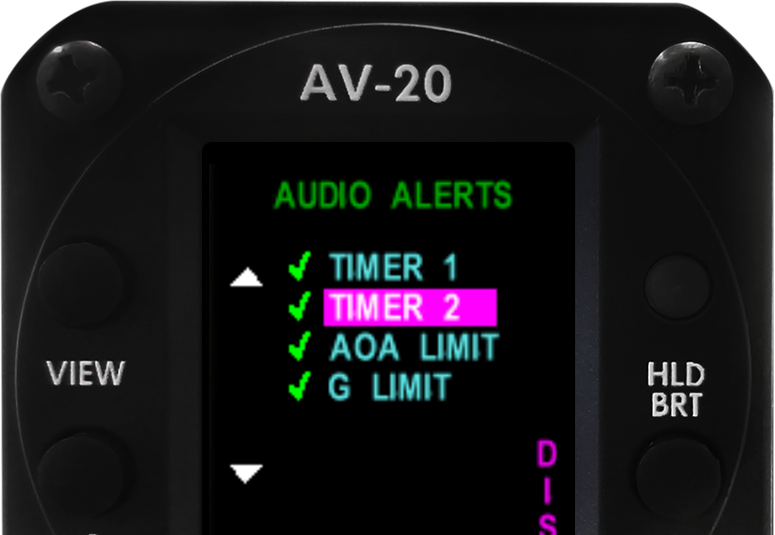

Eyes on the Sky
Fly focused and aware with customizable audio alerts. The AV-20’s multiple display configurations provide audio triggers to alert you of critical flight information and keep you safe.
-

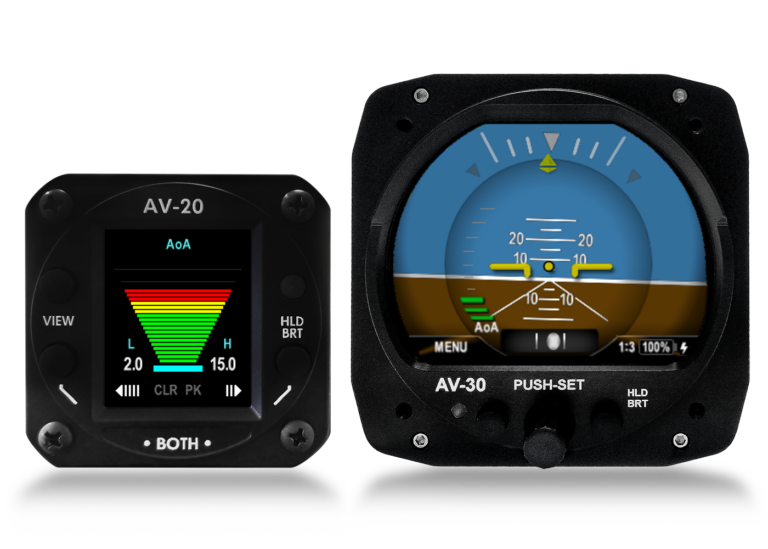

Avoid Stalls During Critical Phases of Flight
The AV-20 alerts you visually and aurally if you approach a dangerous AoA during critical phases of flight such as landing approach. AoA is a derived calculation determined by comparing the aircraft’s pitch, flight path, and G-loading.
-

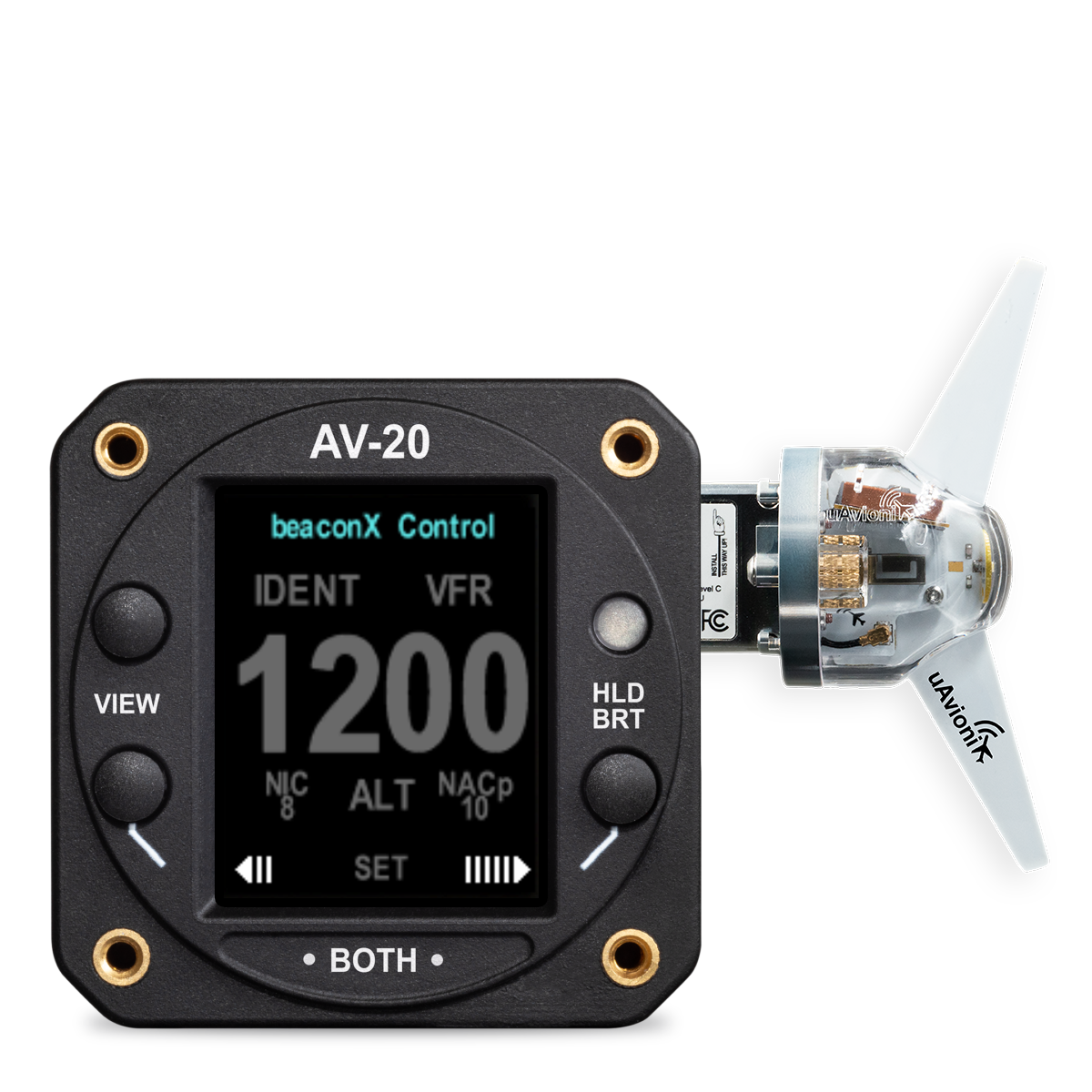

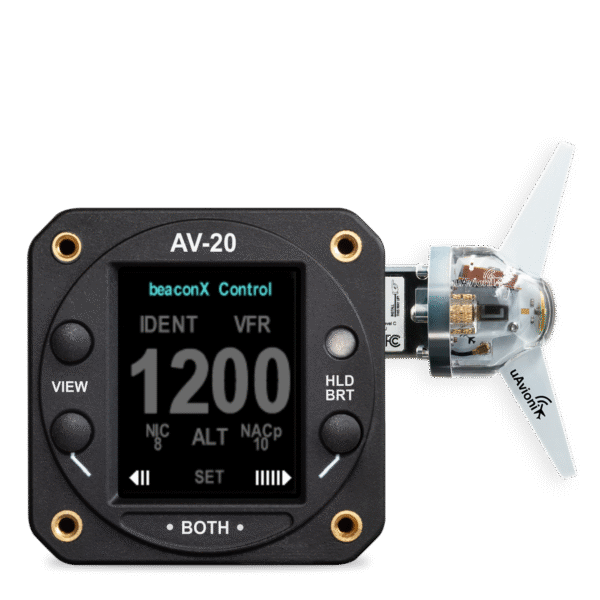

Go Global with tailBeaconX and AV-20-E!
The tailBeaconX TSO + AV-20-E Bundle combines the groundbreaking innovation of the tailBeaconX with the control head functions of the AV-20-E to provide experimental aircraft global ADS-B compliance and multiple functions all in a compact, easy to install package
1 / 5
Additional Features
Transform your panel without sacrificing simplicity.
FAA Approved
Fully certified to meet FAA standards, ensuring reliability and compliance with aviation safety regulations. AV-20-S is also an FAA-Approved clock for both VFR and IFR aircraft.
Avoid Stalls During Critical Phases of Flight
The AV-20 alerts you visually and aurally if you approach a dangerous AoA during critical phases of flight such as landing approach.
Internal Battery
Includes a backup power source that ensures functionality and timekeeping even during power interruptions.
Bundles
You’re In Control with the AV-20
AV-20-E + echoESX Bundle
tailBeaconX TSO + AV-20-E Bundle
Packages
Add Outside Air Temperature (OAT) to Your AV-20
FAQ’S
Knowledge Base
- Aircraft Compatibility
- FAA Requirements
- Installation
- Operation
- Maintenance
- Troubleshooting Tips and Tricks
-
-
What types of aircraft is the AV-20-S compatible with?
The AV-20-S is suitable for installation in Part 23 Class I and II aircraft as outlined in its NORSEE certification.
-
-
-
Is the AV-20-S FAA approved?
Yes, the AV-20-S is FAA approved under the NORSEE (Non-Required Safety Enhancing Equipment) policy, ensuring it meets high safety and performance standards.
-
-
-
What is involved in installing the AV-20-S?
The AV-20-S is designed for easy installation in a standard 2” instrument hole, with minimal aircraft modification required. Detailed installation guidelines are provided in the AV-20 Installation Manual.
-
-
-
How do I configure the display settings on the AV-20-S?
The AV-20-S features a user-friendly interface that allows pilots to customize display settings including brightness, audio alerts, and more directly through the unit’s setup menu.
-
-
-
What maintenance does the AV-20-S require?
Regular maintenance includes checking the internal battery and ensuring that the software is updated. Refer to the Pilot’s Guide for detailed maintenance instructions.
-
-
-
What should I do if the AV-20-S is not displaying correct information?
Ensure the unit is properly calibrated, especially for AoA and G-meter functionalities. If issues persist, consult the Troubleshooting section of the Pilot’s Guide or contact uAvionix support for assistance.
-
Documentation
AV-20 Manuals & Guides
-
Technical Specifications

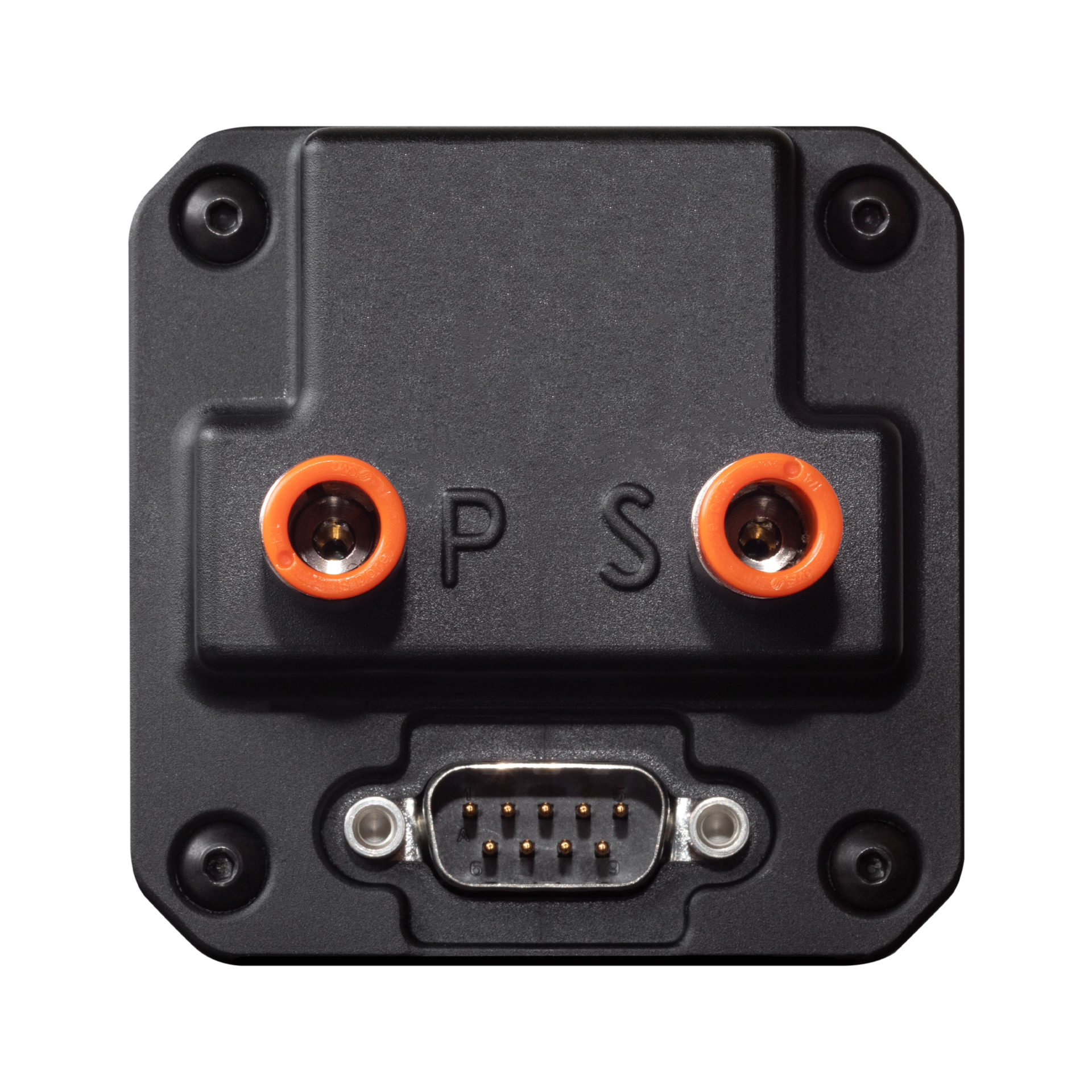

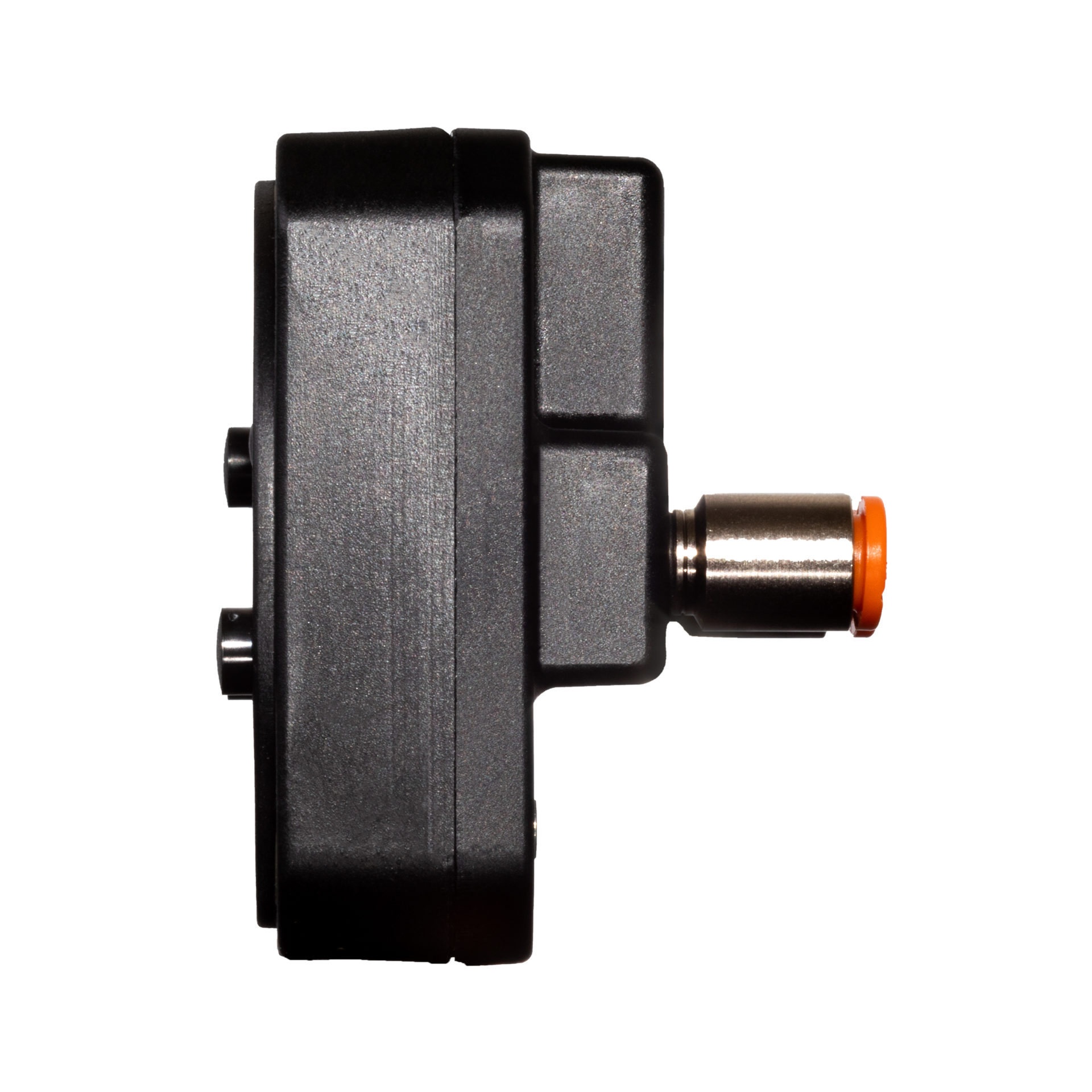

Specification Value Input Voltage Nominal +10 to +32 VDC Input Voltage Max +60 VDC Input Power Nominal 3 Watts (0.25Amps @ 12VDC) Input Power Max 6 Watts (0.50 Amps @ 12VDC) Required Circuit Breaker 1 Amp Operation on Battery 30 Minutes (Standard 15°C Env) Physical Attributes Mounting Configuration 2 ¼” Round Instrument Hole Dimensions wo/Connector 2.4 x 2.4 x 1.2 Inches Weight 0.25 Lbs. Electrical Connector 9 Pin Male D-Sub Pneumatic Connectors ¼” OD Quick Connect Mounting (4X) #6-32 Machine Screws Case Material High Impact ABS Plastic Environmental Operating Temp -20°C to +55°C Storage Temp (48 Hrs) -30°C to +80°C (Via Analysis) Humidity (48 Hrs) 90% RH (Via Analysis) Display Diagonal Size 1.8” Contrast Ratio (Typical) 500 Brightness (Typical) 1000 cd/m2 Viewing Angle Left/Right 60° Viewing Angle Up 45° Viewing Angle Down 10° Backlight Lifetime (Typical) 50,000 Hrs -
AV-20-S Documentation (NORSEE Certified)
-
AV-20-E Documentationn (Experimental Aircraft Only)
-
