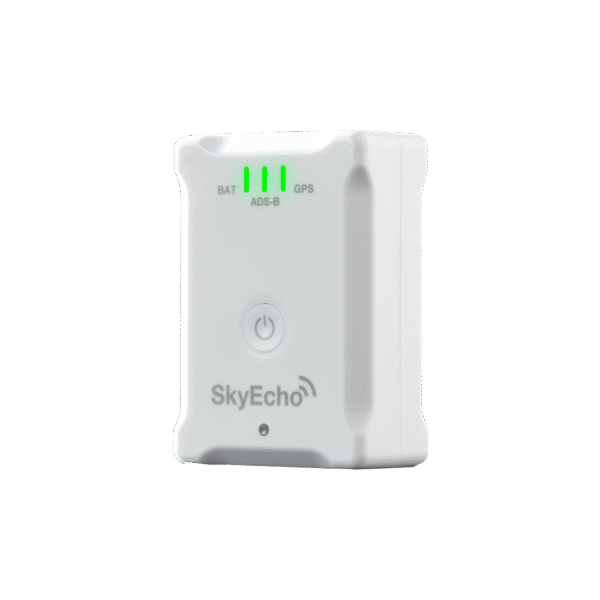

SkyEcho
SKU: UAX-90034-01
Primary Features
-
Dual-Band ADS-B Transceiver
SkyEcho is not just a receiver but also transmits ADS-B data on 1090MHz. It meets MOPS DO-260B Class A0 with 25W output power, making your aircraft visible to nearby ADS-B equipped aircraft.
-
Portable and Easy to Use
Designed as a portable device, it integrates seamlessly with your Electronic Flight Bag (EFB) apps like ForeFlight, SkyDemon, and others through GDL90 protocol over Wi-Fi, supporting real-time traffic information.
-
Integrated Certified GPS
Features a TSO-C199 certified GPS that provides high-integrity, SBAS-augmented position data to ATC and nearby aircraft, enhancing safety and situational awareness.
-
Extended Operational Capacity
The internal battery supports up to 12 hours of continuous operation, ideal for long flights, and is rechargeable via USB-C, ensuring it is ready for use whenever needed.
1 / 4
Additional Features
Enhanced Safety and Visibility
Approved under UK CAA CAP 1391 and CASA 20:18, it allows light aircraft to be visible without the need for traditional transponders.
Multiple Connection Capabilities
Connects up to 4 devices simultaneously over Wi-Fi, allowing the crew and passengers to view real-time traffic information.
Weather and Traffic Information
Capable of receiving FIS-B and TIS-B information where available, providing comprehensive in-flight data for better decision-making.
Products
RAM Suction Cup Mount
Packages
ADS-B and FLARM Traffic Display on Your EFIS
FAQ’S
- Aircraft Compatibility
- FAA Requirements
- Installation
- Operation
- Maintenance
- Troubleshooting Tips & Tricks
-
-
What types of aircraft can use SkyEcho?
SkyEcho is suitable for light aircraft, gliders, and balloons as approved under UK, Australian & New Zealand regulations.
-
-
-
Is SkyEcho approved for use in the USA?
At this time, SkyEcho is not available for use in the United States, as availability is pending regulatory clearance.
-
-
-
How do I install SkyEcho in my aircraft?
SkyEcho does not require professional installation. It can be mounted using a suction cup on any aircraft window providing a clear view of the sky.
-
-
-
How do I operate SkyEcho with my existing EFB?
Connect SkyEcho via Wi-Fi to your EFB device. It is compatible with any GDL 90 standard protocol EFB application.
-
-
-
What maintenance does SkyEcho require?
SkyEcho is maintenance-free, other than regular charging and firmware updates as recommended by uAvionix.
-
-
-
What should I do if SkyEcho is not transmitting data?
Ensure that it is charged, properly configured via its internal Wi-Fi setup page, and that there are no obstructions blocking its antennas.
-
Accessories
RAM Suction Cup Mount
Documentation
SkyEcho Manuals & Guides
General Documentation
SkyEcho Installation and Pilot's Guide UAV-1002156-001 [ Revision N – 12/13/24 ]
SkyEcho Aeronautical Information Circular (AIC) 141/2019
SkyEcho Australia Addendum Installation and Pilot's Guide UAV-1006630-002 [ Revision A – 12/13/24 ]
SkyEcho New Zealand Addendum Installation and Pilot's Guide UAV-1006630-003 [ Revision A – 12/13/24 ]
SkyEcho United Kingdom Addendum Installation and Pilot’s Guide UAV-1006630-00 [ Revision A – 12/13/24 ]
General Documentation
SkyEcho Installation and Pilot's Guide UAV-1002156-001 [ Revision N – 12/13/24 ]
SkyEcho Aeronautical Information Circular (AIC) 141/2019
SkyEcho Australia Addendum Installation and Pilot's Guide UAV-1006630-002 [ Revision A – 12/13/24 ]
SkyEcho New Zealand Addendum Installation and Pilot's Guide UAV-1006630-003 [ Revision A – 12/13/24 ]
SkyEcho United Kingdom Addendum Installation and Pilot’s Guide UAV-1006630-00 [ Revision A – 12/13/24 ]
