skyBundle TSO

skyBundle TSO

SKU: UAX-90117-01

$2,849

ADS-B Out, ADS-B In – all in one perfect pairing.

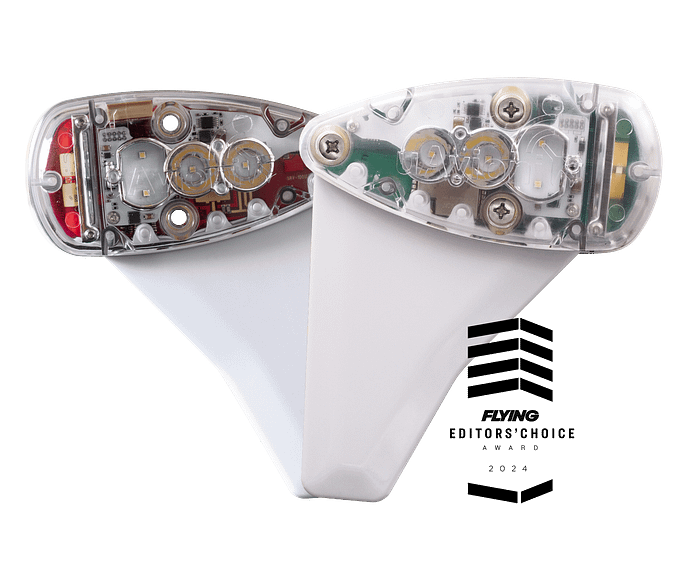

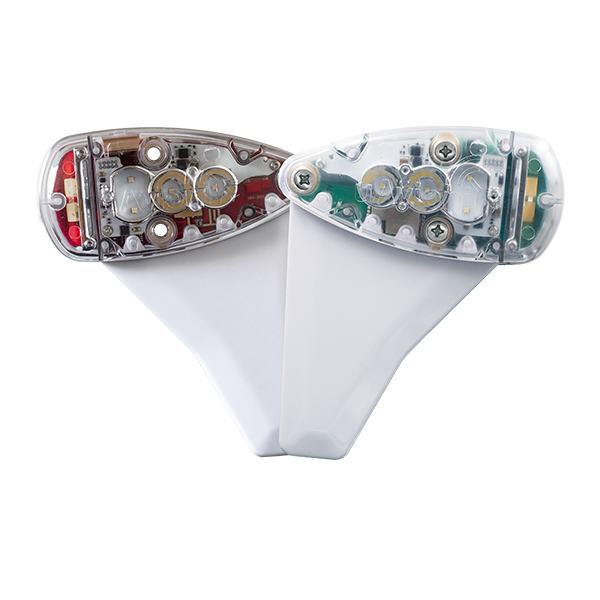

The skyBundle from uAvionix is the ultimate all-in-one solution for General Aviation ADS-B compliance, uniquely combining both ADS-B Out and ADS-B In functionalities into a single, wingtip-mounted device. This innovative bundle includes the skyBeacon and skySensor, providing a comprehensive suite of features designed to enhance safety, compliance, and operational efficiency.

  • Product Details

    ADS-B In  | ADS-B Out  |  WAAS GPS  |  Altimeter  |  LED Nav Light  |  LED Anti-Collision (Strobe)

    Save $100 with the world’s only wingtip-mounted ADS-B OUT AND ADS-B IN solution. The skyBundle combines the skyBeacon and skySensor to meet all your ADS-B needs with the lowest installation cost and largest approved model list of any UAT ADS-B system.

  • What's In The Box

    skyBeacon TSO

    • skyBeacon TSO device
    • skybeacon Certified Top-Level Assembly
    • skyBeacon-skySensor Installation Kit
    • skyBeacon WiFi Card
    • skyBeacon CofC Card
    • Coaster, AV-30

    skySensor TSO

    • skySensor TSO device
    • skySensor TSO Top Level Assembly
    • skySensor TSO Certificate of Conformance
    • skySensor WiFi Card

Primary Features

  • Complete ADS-B Solution

    Integrates both ADS-B Out and ADS-B In capabilities in a single wingtip-mounted unit, making it a compact and efficient solution for General Aviation.

  • Enhanced Visibility and Safety

    Includes LED navigation and anti-collision (strobe) lights that improve visibility, enhancing safety during flight operations.

1 / 2

Additional Features

Awareness Dependability Safety – Breakthrough (ADS-B)

WAAS GPS Integration

Equipped with WAAS GPS for improved positional accuracy and reliability, supporting compliant flight operations under ADS-B regulations.

Reduced Power Consumption

Designed to be energy-efficient, minimizing power consumption with its LED lighting technology.

Easy to Monitor and Update

Supports remote diagnostics and updates, simplifying maintenance and ensuring the system remains current with evolving aviation standards.

Accessories

Installation Kits and Adapters

skyBeacon – 301 Wingtip Adapter UAV-1002301-001

Buy Now

skyBeacon – 302 Wingtip Adapter UAV-1002302

Buy Now

skyBeacon Installation Kit

Buy Now

FAQ’s

Knowledge Base

Packages

Traffic Awareness at Your Fingertips

skyBundle TSO

AV-Link PMA

AV-30-C

Purchase Package

Documentation

SkyBundle Manuals and Guides

  • Technical Specifications

    skyBeacon Technical Specifications:

    Specification Value
    Input Voltage 11-31V DC
    Operating Power 3 watts
    Size 124x116x48mm
    Weight 90 grams
    SDA/SIL 2/3
    Operating Temp -45°C to 80°C
    978MHz UAT Transmitter
    Power Classification DO-282B Medium Power
    WAAS GPS
    Tracking
    Reacquisition
    Cold Start    		 -166dBm
    -160dBm
    -148dBm
    LED Position Light
    Color Aviation Red
    Intensity 40 candelas
    Wi-Fi Configuration
    Physical 802.11b/g/n
    App Compatibility iOS, Android
    Power Transcoder Decodes Mode A and C via Power Transcoder



    skySensor Technical Specifications:

    Specification Value
    Input Power 11-31V DC
    Size 124x116x48mm
    Weight 90 grams
    SIL/SDA 2/3
    Operating Temp -45 to 80°C
    ADS-B Receivers
    1090 Sensitivity -93dBm
    978 Sensitivity -104dBm
    GPS
    Tracking

    Reacquisition

    Cold Star

    		 -166dBm

    -160dBm

    -148dBm
    LED Position Light
    Color Aviation Green
    Intensity 40 candelas
    Wi-Fi
    Physical 802.11b/g/n
    App Compatibility iOS, Android
