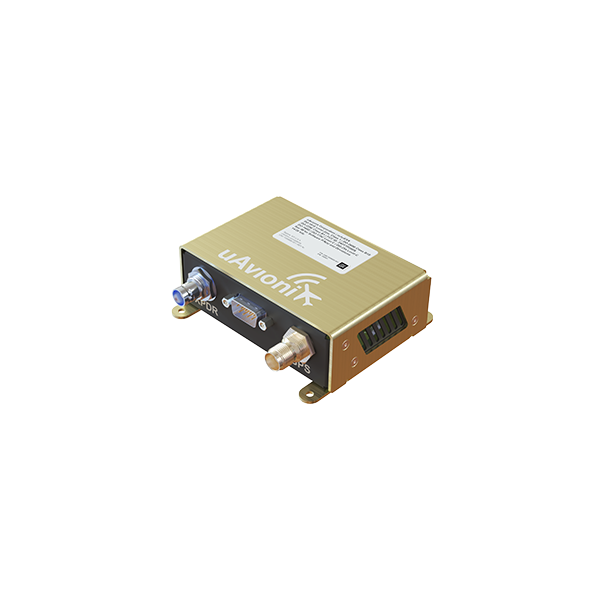

echoESX TSO
SKU: UAX-90119-01-1
$2,499
Out of stock
Primary Features
-
Streamlined Integration
Designed to integrate seamlessly with AV-30-E and AV-20-E displays, echoESX also features an internal GPS receiver—eliminating the need for a separate GPS installation. For certified aircraft, an optional TSO-certified GPS antenna from uAvionix completes the package.
-
Easy Retrofit
Designed for quick retrofit installation that clears up your panel compared to traditional ADS-B Mode S transponders, echoESX is an easy replacement for your existing Mode C transponder with the ability to use your existing installed monopole transponder antenna.
1 / 2
Additional Features
Optimized Installation and Performance
User-Friendly Setup
Quick setup and intuitive configuration via AV-30-E and AV-20-E displays
Ecosystem Integration
Enhanced interoperability within the uAvionix ecosystem (AV-Link, AV-HSI, ForeFlight Sentry)
Compact Remote-Mount Solution
The echoESX combines a space-saving remote-mount design with ultra-efficient operation. Its minimal Size, Weight, and Power (SWaP) profile makes it an ideal upgrade from bulky legacy transponders, reducing strain on your aircraft’s electrical system.
Knowledge Base
FAQ’s
- Aircraft Compatibility
- FAA Requirements
- Installation
- Operation
- Maintenance
- Troubleshooting Tips and Tricks
-
-
Which aircraft can use echoESX?
echoESX is suitable for experimental and certified fixed-wing aircraft, gliders, and gyrocopters. FAA TSO Certification is currently pending approval.
-
-
-
Does echoESX meet FAA ADS-B compliance?
Yes, echoESX meets the FAA ADS-B Out performance standards as per 14 CFR 91.227.
-
-
-
What does installation involve?
echoESX installs quickly using existing monopole transponder antennas and an integrated GPS, significantly reducing installation complexity and cost. External GPS Antenna is required.
-
-
-
How do pilots control and configure echoESX?
Control and configuration are handled seamlessly via AV-30-E or AV-20-E instruments, simplifying pilot interaction.
-
-
-
What routine maintenance is required?
echoESX requires minimal maintenance, typically involving periodic regulatory function checks only.
-
-
-
What if the echoESX transponder doesn't respond to all test sets?
echoESX transponders, certified post-January 2020, intentionally do not respond to ATCRBS/Mode S All-Calls during testing. Utilize the Ground Test Mode “BeaconX GTM” on AV-30-E or AV-20-E to verify transponder functionality correctly.
-
