Portable Tactical Airspace Awareness

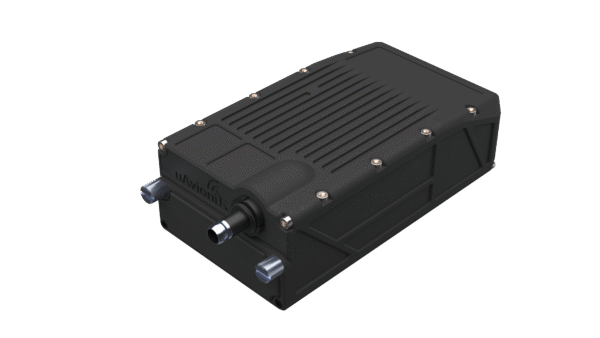

SkyTAK is a compact, ruggedized airspace surveillance solution designed for tactical edge operations. As a portable, passive receiver supporting ADS-B and Mode 5 Level 2/2-B, SkyTAK delivers real-time situational awareness directly to ATAK-enabled devices. Whether dismounted, vehicle-mounted, or supporting UAV missions, SkyTAK provides unmatched airspace visibility, enhances fratricide prevention, and improves decision-making in dynamic environments. With seamless integration, plug-and-play simplicity, and multi-domain support, SkyTAK ensures operators maintain an operational advantage in contested and congested airspace.

  • Product Details

    SkyTAK is a portable, passive receiver supporting ADS-B and Mode 5 Level 2/2-B that delivers real-time situational awareness directly to ATAK-enabled devices.

Contact Sales

Primary Features

  • Passive Airspace Monitoring

    Track Mode 5 and ADS-B traffic in real-time with ATAK.

  • ATAK Enabled Coordination

    Push airspace data to squads, platoons, or command elements instantly.

  • Field-Ready Design

    Rugged, waterproof, and lightweight—built for operational flexibility anywhere.

1 / 3

Additional Features

Enhanced Performance and Integration Capabilities

Integrated ATAK Interface

SkyTAK connects directly to ATAK, WinTAK, and WebTAK environments using CoT format, requiring no additional software installation.

Nett Warrior Compatible

Standardized connectors allow direct integration with existing military systems and gear.

No External Antenna Needed

Fully self-contained design simplifies deployment without sacrificing performance.

FAQ’s

Knowledge Base

Documentation

SkyTAK Manuals & Guides

  • Technical Specification

    For Technical specifications of the SkyTAK

    Contact Sales

  • Downloads

    User and Configuration Manual

    Contact Sales

  • Technical Specification ALT
    Specification Value
    Input Voltage / Power 8-32 Vdc
    1 Watt (continuous)
    Size 5.7 in x 3 in x 1.85 in
    Weight 500 g (approx.)
    Operating Temp -45° to 71° C
    Receiver
        ADS-B 1090 Rx Sensitivity -79 dBm ±2 dB
        Mode 5 Rx Sensitivity -84 dBm ±2 dB
        ADS-B 978 RX Sensitivity -81 dBm ±2 dB
    Interfaces
        Control Mighty Mouse 807 NW
    8070-1675-00ZNU6-6SY
        Digital Interface USB 2.0 Dual Serial Port
    COM 1 – AIMS 23-901
    115,200 bps, Traffic
    COM 2 – uAvionix UCP
    57,600 bps, Control
        Crypto AIMS 04-900(A)
    KIV-79
    Antenna Options
        Integrated Antenna 25 nm range
        External TNC Antenna 150 nm range
