SBAS Global Positioning System (GPS)

Overview

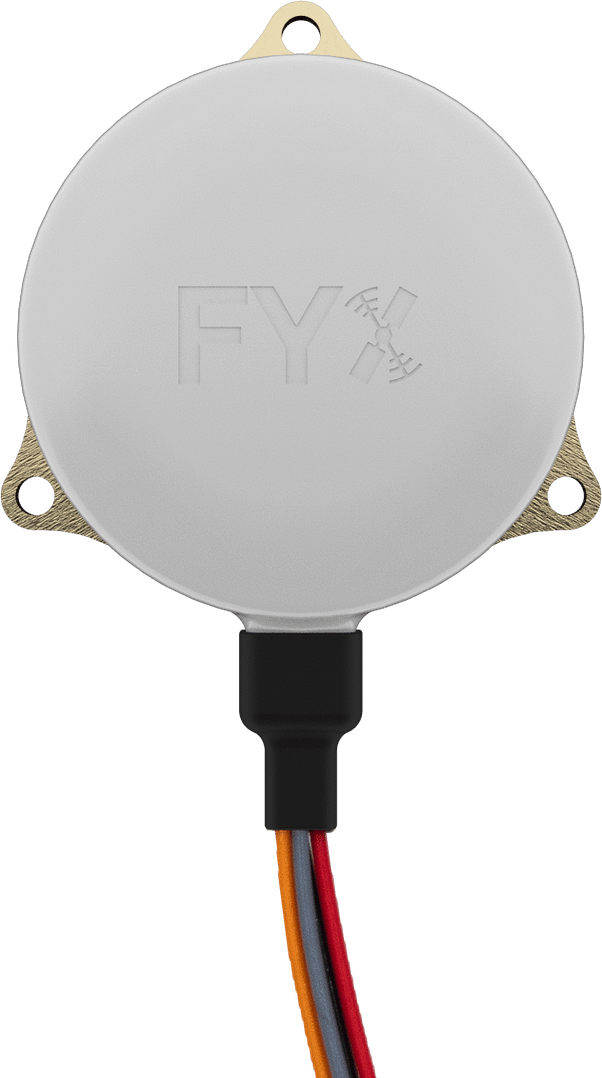

truFYX is the world’s first Technical Standard Order (TSO) certified SBAS Global Positioning System (GPS) position source designed specifically for Unmanned Aircraft Systems (UAS) autopilots and Automatic Dependent Surveillance – Broadcast (ADS-B) OUT solutions. The truFYX incorporates the GPS receiver and antenna into a single 24mm radius / 20g waterproof enclosure.

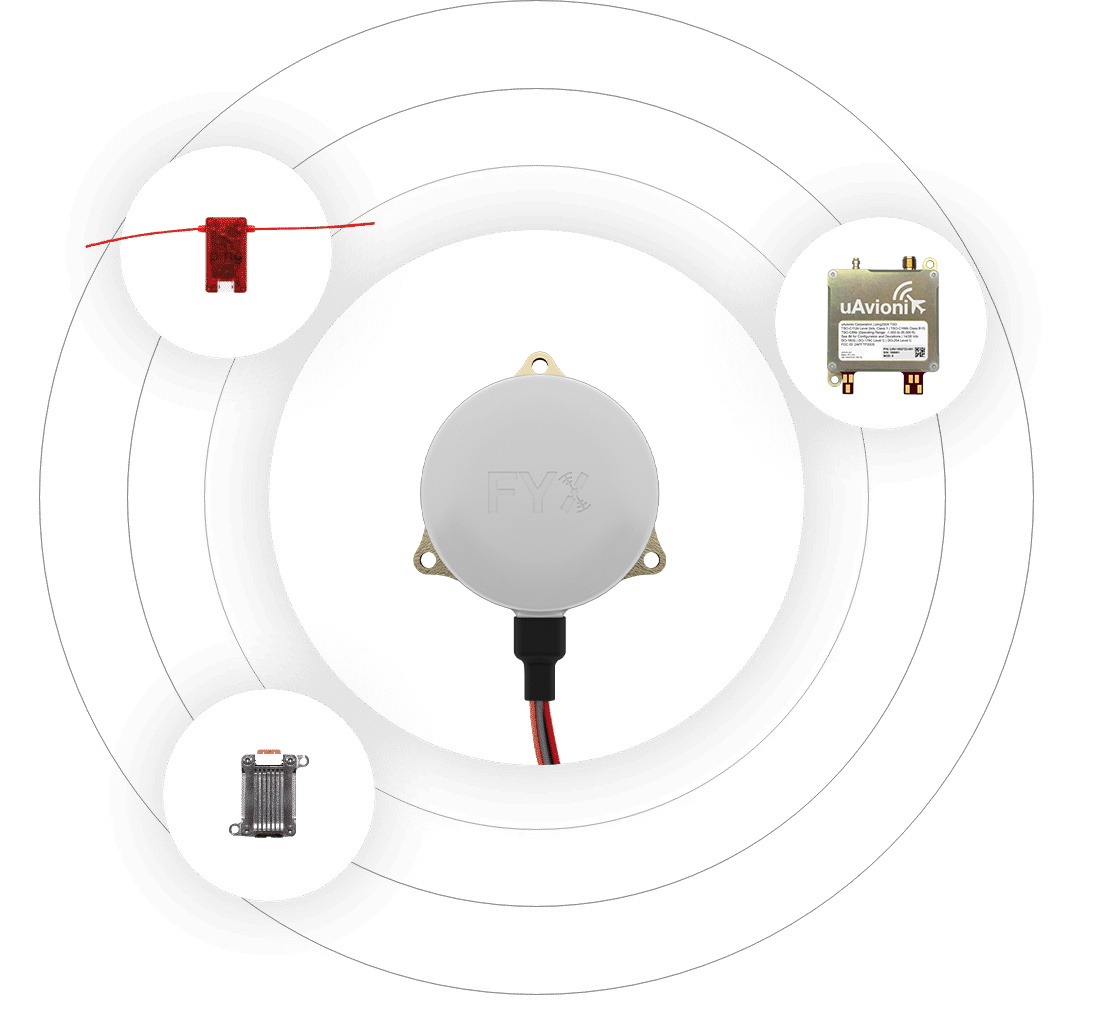

Reduce your onboard GPS count by leveraging truFYX as the primary position source to your autopilot and ADS-B solution.

FAA TSO Certification Pending (TSOA May 2019)

FAA TSO-C145e, Class Beta 1 GPS provides for:

  • Primary position source for domestic en route, terminal, approach (LNAV), and departure navigation

  • Integrity in the absence of the SBAS signal through the use of Fault Detection and Exclusion (FDE)

  • Enhanced accuracy with processing of optional ionospheric corrections

  • Meeting worldwide compliance requirements for controlled airspace access pre- and post- 2020 ADS-B mandates in the U.S. and E.U.

Conformity

  • RTCA DO-229E Class Beta 1

  • RTCA DO-178C Level C

  • RTCA DO-254 Level C

  • RTCA DO-160G

  • FAA TSO-C145e Class Beta 1 (Pending)

Mechanical Specification

Documentation

Download Data Sheet

Technical Specifications

Specification Value
Part Number UAV-1002809-001
Position Engine
GPS L1C/A w. SBAS 12 GPS Channels
3 SBAS Channels
HPA / VPA 5 m / 7 m
Velocity Accuracy 3 m/s
Time Accuracy 30 ns
Update Rate 5 Hz
SIL/SDA 3/2
Approach Capability LNAV
Sensitivity
Acquisition -148 dBm
Tracking -167 dBm
Electrical Characteristics
Input Power 5.5-31V, 0.5 W
Mechanical Characteristics
Size 47.35×8.21 mm
Weight 40 grams
Interfaces
RS-232 115200bps
Protocol NMEA 0183 + RAIM or MAVLink
Time Pulse RS-232, 1pps

Electrical

Color Signal
BLACK Aircraft Ground
RED Aircraft Power
GRAY NMEA RS-232 TXD
ORANGE NMEA RS-232 RXD
WHITE PPS Time Pulse

Protocol

NMEA Sentence
GPRMC GPS Data
GPGGA Fix Data
GPGSA DOP and active satellites
GPGSV Satellites in View
GPGLL Position and Time
GPVTG Track and Ground Speed
GPZDA Time and Date
RAIM Protection Limits and Figures of Merit
PUAVVV Vertical Velocity

Environmental

Condition DO-160G Category
Temperature 4.0 B2
Temperature Variation 5.0 B
Humidity 6.0 A
Operational Shock 7.0 B
Vibration 8.0 Type 5 level M
Waterproofness 10.0 S
Magnetic Field 15.0 Z
Power Input 16.0 BX
Voltage Spike 17.0 B
AF Conducted 18.0 B
Induced Signal Susceptibility 19.0 AC
RF Susceptibility 20.0 TT
RF Emissions 21.0 B
Lightning Induced Transient Susceptibility 22.0 A2G2L2
ESD 25.0 A
