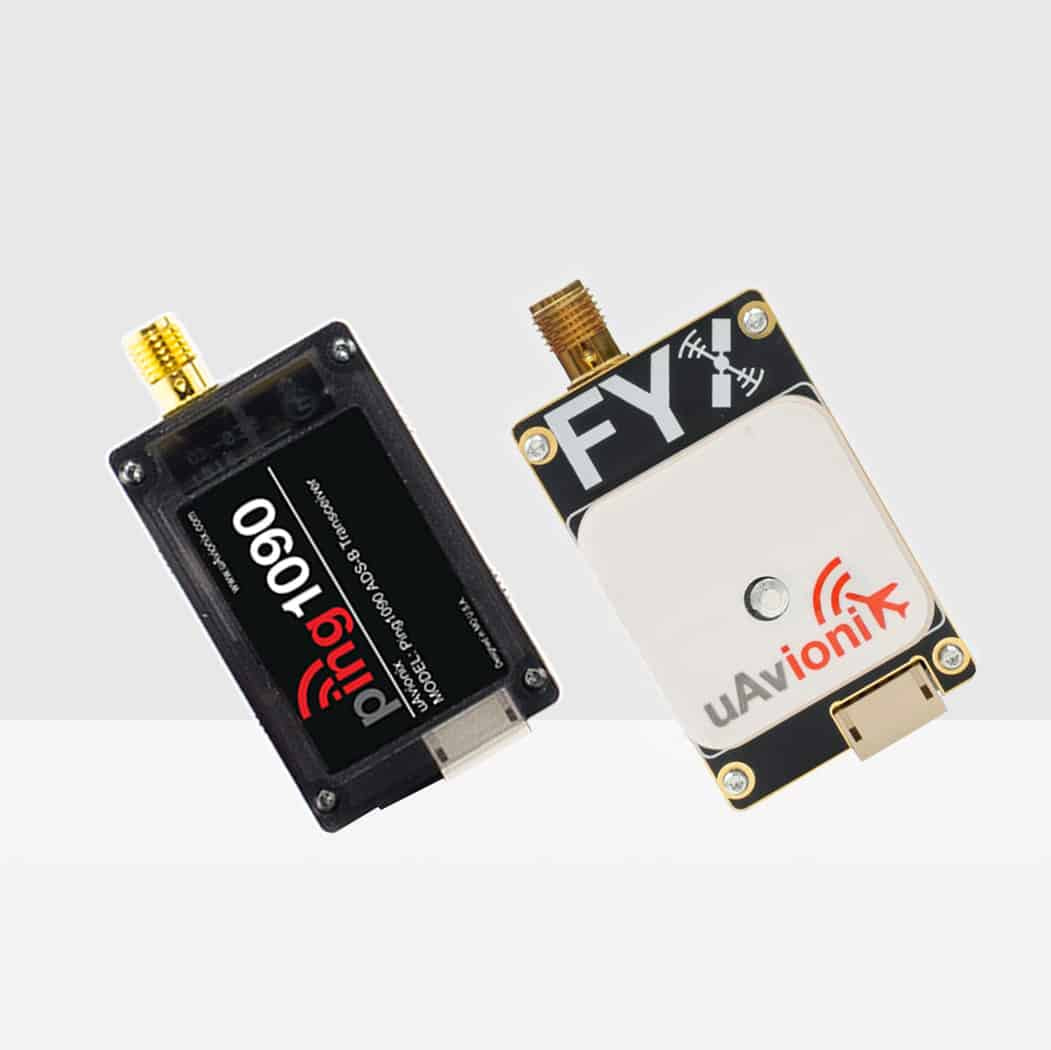

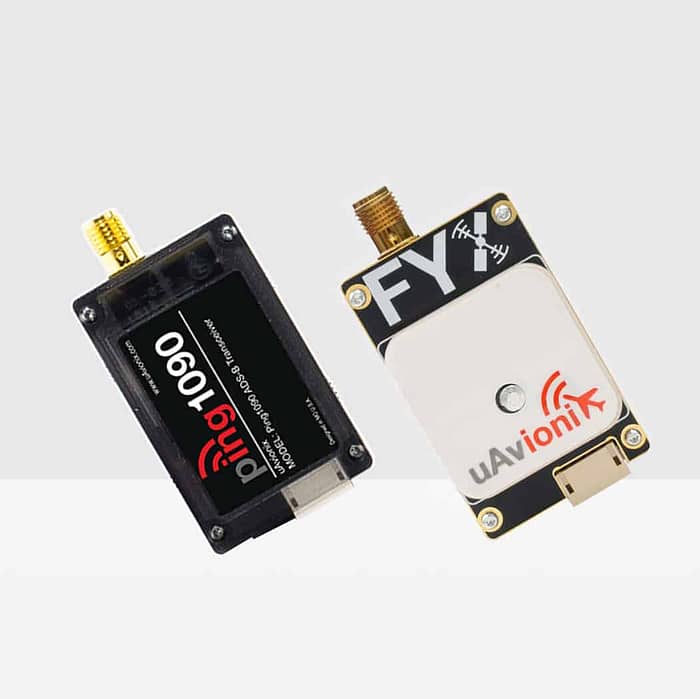

ping1090i
SKU: UAX-90014-01
$2,200
Sorry, this product is not available in your country. Please contact a uAvionix reseller for orders in your region or contact us.
Primary Features
-
Dual-Link ADS-B Traffic Awareness
Detect aircraft threats on 1090MHz and 978MHz within a 100-statute mile radius in real-time.
-
Integrated WAAS GPS
Embedded uAvionix FYX GPS with SBAS provides robust accuracy and integrity, safeguarding against GPS jamming and signal anomalies.
-
Approved Electronic Conspicuity Device
Certified in the UK (CAA CAP-1391) and Australia (CASA CAO 20.18), facilitating compliant UAS operations internationally.
-
Plug-and-Play Autopilot Integration
Seamlessly integrates with popular autopilot systems, including Ardupilot, Pixhawk, and Auterion Skynode, streamlining your UAS setup process.
1 / 4
Additional Features
Compact Design, Advanced Performance
Ultra-Compact & Lightweight
Weighing only 26 grams with dimensions of 25 x 40 x 16mm—ideal for payload-sensitive operations.
Rapid GPS Initialization
Battery-backed GPS enables quick Time-to-First-Fix (TTFF) for minimal start-up delays.
Simple Mounting & Installation
Includes mounting hardware and easy-to-use connectors for fast and secure setup.
FAQ’s
Knowledge Base
- Aircraft Compatibility
- FAA Requirements
- Installation
- Operation
- Maintenance
- Troubleshooting Tips and Tricks
-
-
Can ping1090i be used on any UAS?
Yes, it is compatible with most small Unmanned Aircraft Systems (sUAS), integrating easily with standard autopilots such as Ardupilot, Pixhawk, and Auterion Skynode.
-
-
-
Does ping1090i meet FAA ADS-B regulations?
While ping1090i complies with international electronic conspicuity standards (CAP-1391, CAO 20.18), it is not currently authorized for use within the United States FAA ADS-B regulatory airspace.
-
-
-
What mounting considerations are important?
Ensure ping1090i is mounted with a clear, unobstructed sky view to optimize GPS reception. Avoid installing near signal-blocking materials such as carbon fiber or beneath propellers.
-
How is ping1090i powered?
The device operates on 11-28V DC power and connects via a standard power interface, compatible with typical aircraft battery systems.
-
-
-
How do I configure my ping1090i device?
Setup and configuration are accomplished via the uAvionix Ping Installer mobile app available for Android and iOS devices, using the ping Programmer and Wi-Fi connection.
-
Does the device transmit continuously?
You can configure ping1090i for continuous transmit (every second), receive-only, or standby mode through the mobile application.
-
-
-
What routine maintenance does ping1090i require?
ping1090i requires minimal routine maintenance—ensure regular inspections for secure mounting and antenna integrity. Keep firmware updated via the Ping Installer app.
-
-
-
What should I do if ping1090i is not acquiring GPS lock?
Check for clear sky view, verify antenna connections, and ensure no interference from structural elements or other electronics onboard the aircraft.
-
How do I address integration issues with my autopilot?
Confirm wiring connections per the provided Quick Start Guide, verify autopilot configuration parameters (e.g., ADSB_SELECT in Pixhawk), and review uAvionix’s integration documentation or support portal.
-
Documentation
Manuals & Guides
General Documentation
Ping Installer Mobile App
Owners of the uAvionix Ping line of devices can use this free application to install and configure their hardware.
Supported device(s) include:
- ping978EC
- ping2020i
- ping1090i
- ping200S
- ping20S
Note: this application is not intended to directly configure pingBuddy or pingEFB, but does work in concert with pingBuddy to configure pingNAV and other products.
